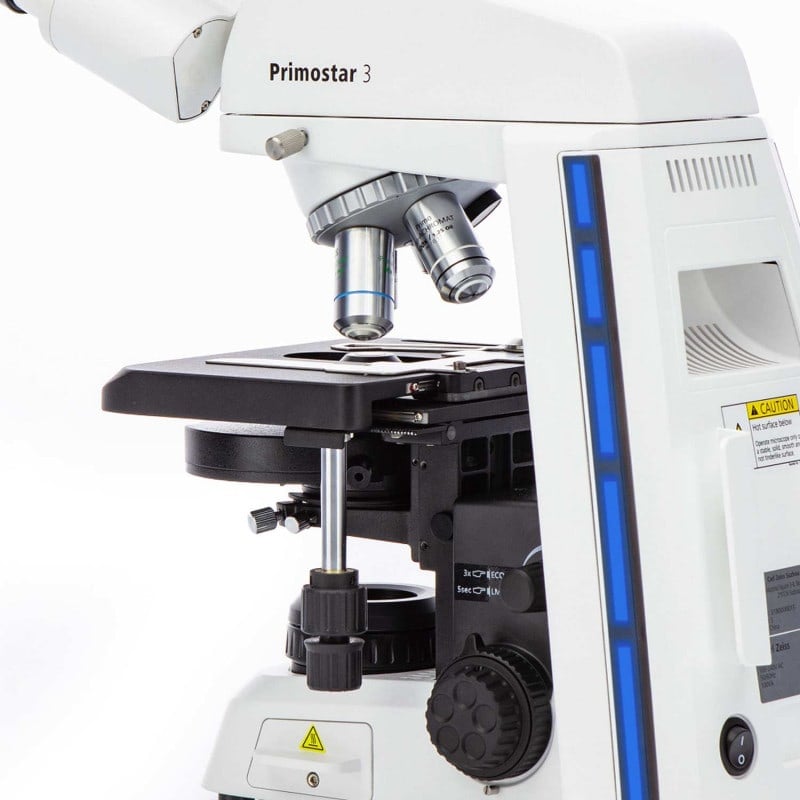

Zeiss Primostar 3 with photo tube

Product overview
With fixed Köhler illumination
3 iPlan achromatic objectives
Magnification up to 400x
Optionally with 100x/oil objective
Optionally available with photo tube

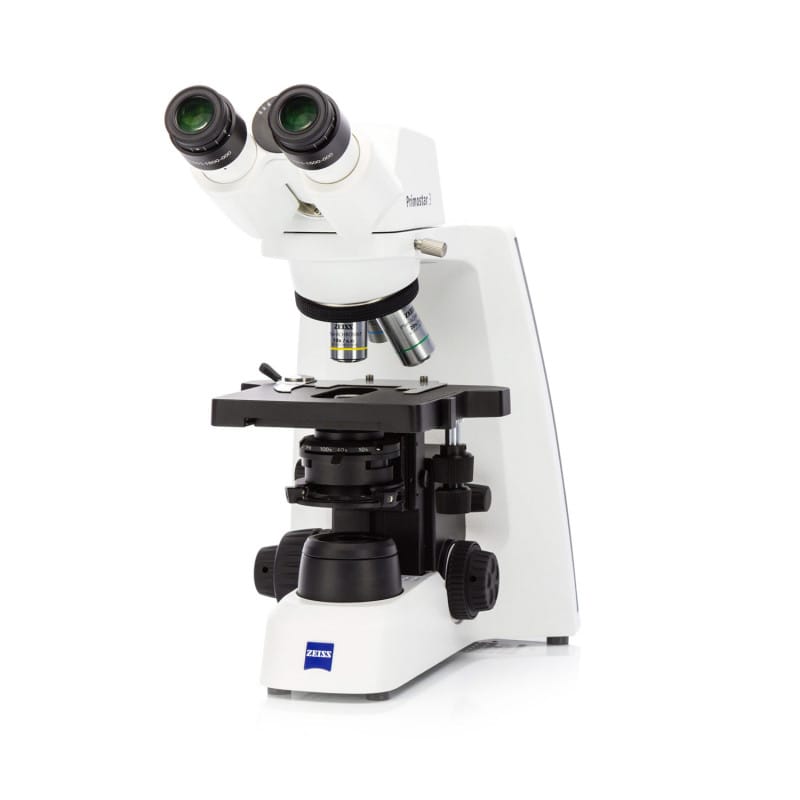

Zeiss Primostar 3
The Zeiss Primostar 3 transmitted-light microscope is equipped with a fixed Köhler stand and is therefore ideal for quick and easy microscopy: for teaching and in the laboratory. The revolving nosepiece is tilted backwards, allowing comfortable positioning of the slide on the stage.

Three high-quality iPlan achromatic objectives and two 10x eyepieces enable 40x, 100x and 400x magnification of the specimen. Optionally, the binocular is also available with a 100x oil immersion objective. One eyepiece is additionally equipped with a pointer, which facilitates the demonstration of microscopic structures.

The Primostar 3 is optionally available as a binocular with or without a 100x/oil objective or with a binocular photo tube for connecting a camera.

Product Details

Zeiss Primo Star 3
Ideal for schools and laboratories
Fixed Köhler stand, no adjustable light field diaphragm
Light source: 1 W LED, white light 5700K

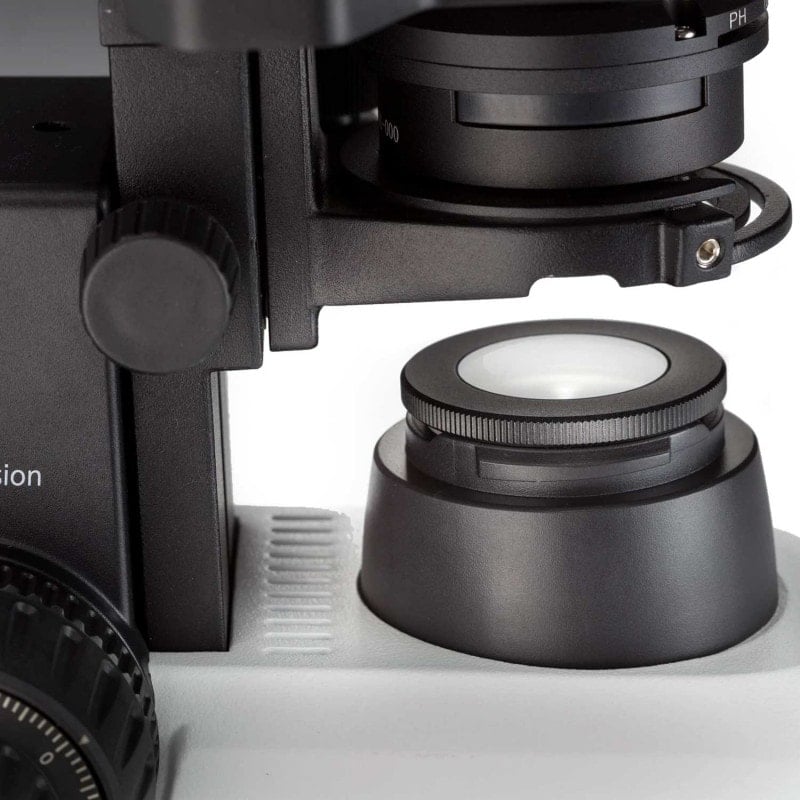

Abbe condenser, 0.9/1.25 with slot
Choice of binocular tube 25°/20 or binocular photo tube 25°/20 (50:50)
Interpupillary distance adjustable between 48 mm and 75 mm
Eyepieces: 10x/SF20
1 eyepiece pointer
Eye cup included
4x revolving nosepiece
3 iPlan achromatic objectives: 40x, 10x, 40x
Optional: With iPlan achromatic objective 100x/oil
Stage drive right
Object stage: 140 x 135 mm
With spring lever (left)
Power button
5 V USB connection
Dimensions (WxHxD): 20.8 cm x 29.6 cm x 39.8 cm
5-year manufacturer's warranty
Delivery contents: Microscope, power supply unit with country-specific adapters, dust cover
