Zeiss Primostar 3 with Camera

Product overview
With network-compatible 8.3 MP camera
Energy-saving 1 W LED light source
Can be used with the Zeiss Imaging App Labscope
Maximum magnification: 400x
Fixed-Köhler

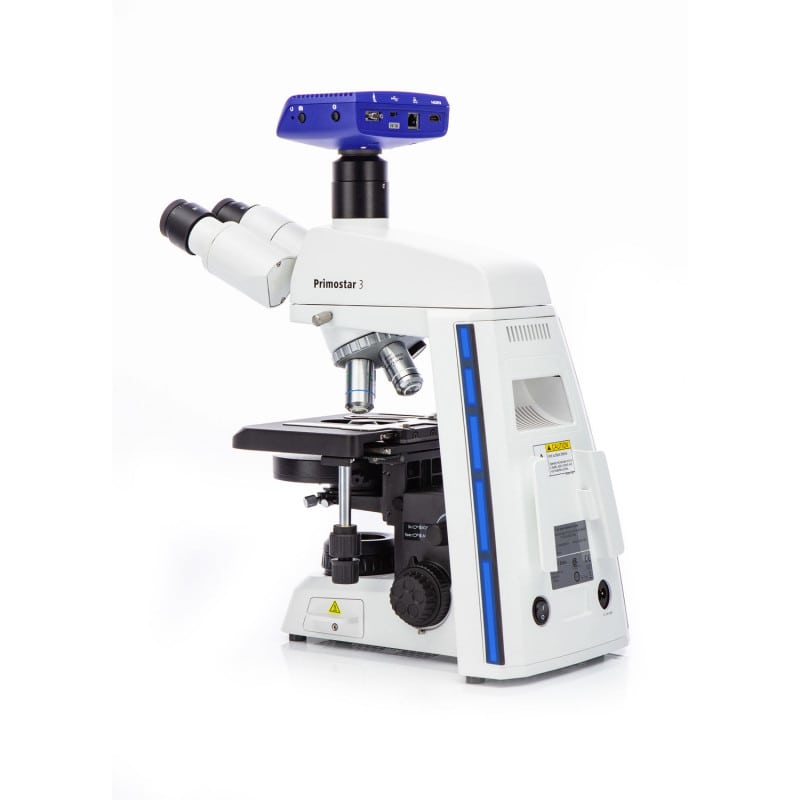

Zeiss Primostar 3 with Camera

The Zeiss Primostar 3 with camera has fixed Köhler equipment, LED transmitted light illumination and an integrated 8.3 MP colour camera. Together with the high quality iPlan Achromat objectives, the microscope enables optimal presentation and documentation of the specimen.

The camera is network-compatible and has a resolution of 3840 x 2160 pixels (Ultra HD) or 1920 x 1080 pixels (Full HD). Using the free Labscope Imaging app from Zeiss, the images of all connected microscopes can be retrieved and viewed in real time. The 4x revolving nosepiece is tilted backwards and allows quick and easy positioning of the slide on the stage. In addition, the three high-quality iPlan achromatic objectives, together with the 10x eyepieces, allow 40x, 100x and 400x magnification of the specimen.

Product Details

Zeiss Primo Star 3 with camera
Ideal for educational institutions and laboratories
Fixed Köhler tripod, no adjustable light field diaphragm
Illumination: 1 W LED, white light 5700 K

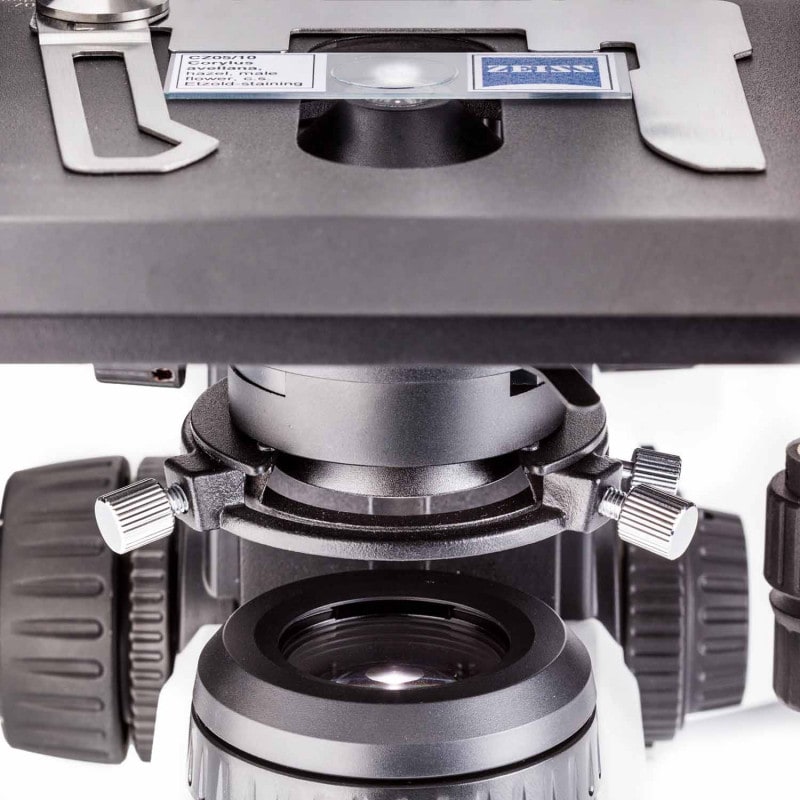

Abbe condenser, 0.9/1.25 with slot
Binocular tube 25°/22 with integrated 8.3 MP camerav
Interpupillary distance adjustable between 48 mm and 75 mmv
1 pair of eyepieces: 10x/SF20
Eyecup included

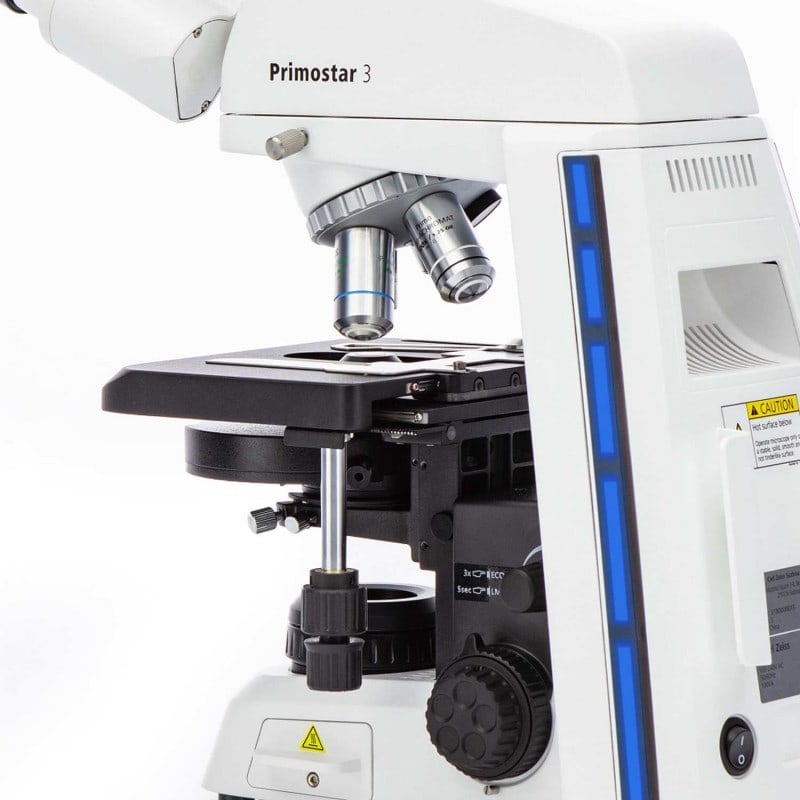

4x revolving nosepiece
3 iPlan achromatic objectives: 40x, 10x, 40x
Stage drive right
Object stage: 140 x 135 mm
With spring lever (left)
Power button
5 V USB connection
5 year manufacturer warranty
Delivery contents: microscope, power supply unit with country-specific adapters, dust cover

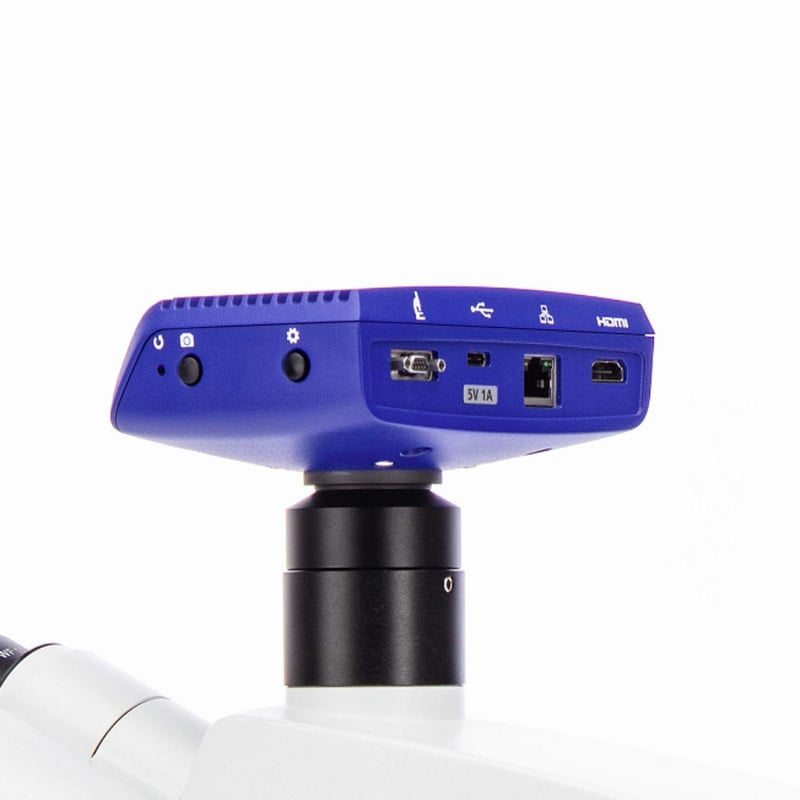

Product Details of the Camera

Network compatible
Sensor type: Sony CMOS colour sensor
Rolling shutter number of pixels: 3840 x 2160 (8.3 MP)
Selectable resolution: 3840 x 2160 (Ultra HD)
Selectable resolution: 1920 x 1080 (Full HD, 1080p)
Pixel size: 1.85 µm x 1.85 µm
Sensor size: 7, mm x 4 mm (1/2.1")
Spectral range: 400 nm to 700 nm
IR filter
Image storage format: tiff or jpg
Video format: mp4
Live frame rates via HDMI: 30 fps
Exposure time: 1 ms
Interfaces: HDMI for monitor, USB3.0 for USB hub, memory stick, WiFi adapter RJ45
Passive cooling through aluminium cooling fins
Supported operating systems: Windows 7/10 10x64 and higher, iOS v11 and higher
Application software: ZEN blue v3.0 and higher
Usable with the Zeiss iOS App and Labscope
