Zeiss Primostar 3 Phase Contrast Microscope with Abbe condenser

Product overview
With Ph2 lens for 40x magnification
With halogen illumination
2 eyepieces with SF22/10x
iPlan achromatic objectives
Full Köhler

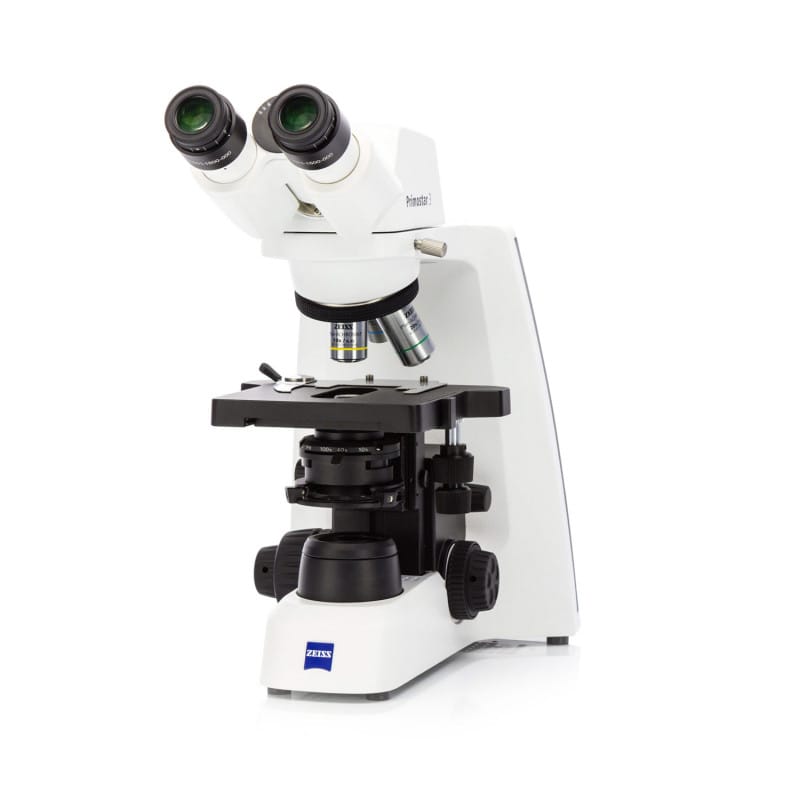

Zeiss Primostar 3 Phase Contrast Microscope

The Zeiss Primostar 3 phase-contrast microscope enables high-contrast imaging of transparent, unstained specimens, such as living cells, thanks to the Ph2 objective. The 5x revolving nosepiece is also equipped with three additional iPlan achromatic objectives (4x, 10x and 40x), which allow it to be used as a normal transmitted light microscope. The full Köhler illumination can be individually adjusted and enables optimal illumination of the specimen.

In addition, the microscope has an energy-saving ECO mode that switches the microscope to sleep mode after 30 minutes of inactivity. The Primostar 3 phase contrast microscope is available with either a normal Abbe condenser and phase shifter or with a phase contrast turret condenser.

Product Details

Zeiss Primostar 3 phase contrast microscope
With phase contrast objective Ph2
Enables phase contrast microscopy at 400x magnification
With full-Koehler stand, adjustable field diaphragm
Illumination: Halogen 6 V 30 W

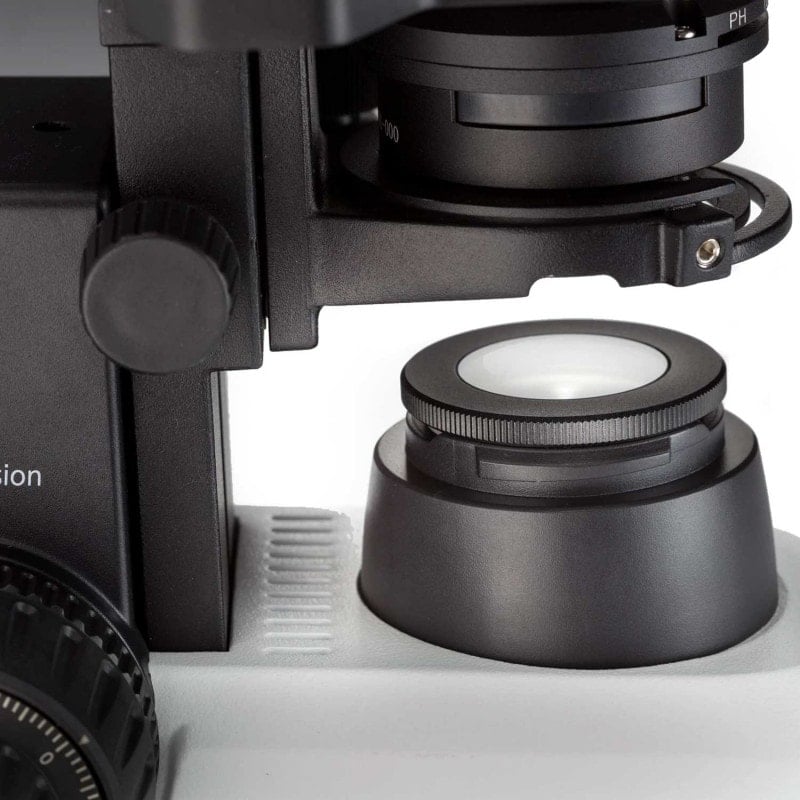

Choice of Abbe condenser, 0.9/1.25 or Abbe Rev. phase contrast turret
Binocular tube 25°/20
With adjustable interpupillary distance between 48 mm and 75 mm
Eyepieces: 10x/SF22
Eyepieces with eyecup
5x revolving nosepiece
iPlan achromatic objectives: 40x, 10x, 40x, Ph2
Slider H/Ph2
Incl. colour filter set (blue, green, yellow)
Stage drive right
Diopter d=30 mm
With light manager
ECO mode
Delivery contents: Microscope, power supply unit with country-specific adapters, dust cover and colour filter set
