Zeiss Primostar 3 Full-Köhler

Product overview
Adjustable Köhler illumination
10x eyepieces with field of view of 22 mm
Magnification up to 400x
5x revolving nosepiece
With photo tube

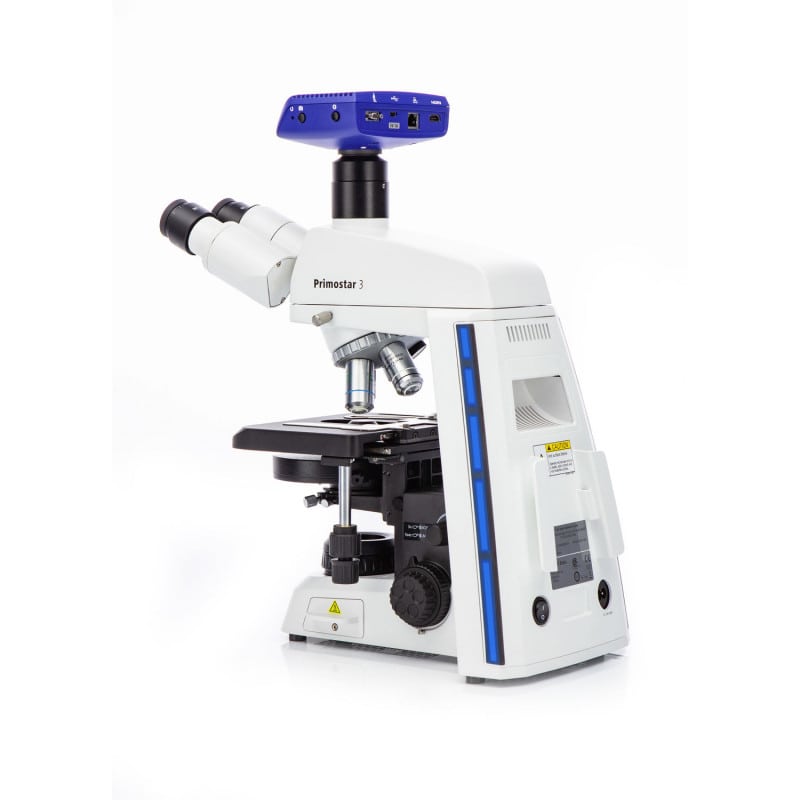

Zeiss Primostar 3 Full-Köhler

The Primostar 3 Full-Köhler has individually adjustable Köhler illumination and is therefore particularly suitable for experienced users, for example in research laboratories.

The SF22 10x eyepieces and three high-quality Zeiss objectives enable a 40x, 100x and 400x magnification of the specimen. In addition, the microscope can be easily extended with additional objectives using the 5x revolving nosepiece. In addition, the ECO mode enables energy-saving work, as the microscope is switched to sleep mode after 30 minutes of inactivity.

The Primostar 3 is equipped with a photo tube so that a microscope camera can be connected for documentation purposes required.

Product Details

Zeiss Primostar 3, Full-Köhler
Adjustable light field diaphragm
Incl. plug-in modules with 6 V 30 W halogen lamp & LED 3 W white light
With photo tube for connection of a camera 25°/22 (50:50)
5-fold revolving nosepiece. tilted backwards
Adjustable interpupillary distance: 48 mm to 75 mm
2 eyepieces: 10x/SF22
3 objectives: 4x, 10x, 40x
Illumination: LED
With Abbe condenser 0.9/1.25 with slot
ECO mode
Light Manager, ensures constant light intensity across all magnifications
Cross table with spring lever for object holder
Dimensions (WxHxD): 20.8 cm x 29.6 cm x 39.8 cm
Delivery contents: microscope, dust cover, power supply unit, operating instructions
