T3300 Ultrasound System

Product overview
Portable ultrasound system
Splash-proof 13.3'' multi-touch wide-angle display
Integrated patient management system
Automatic image processing
High-resolution image quality

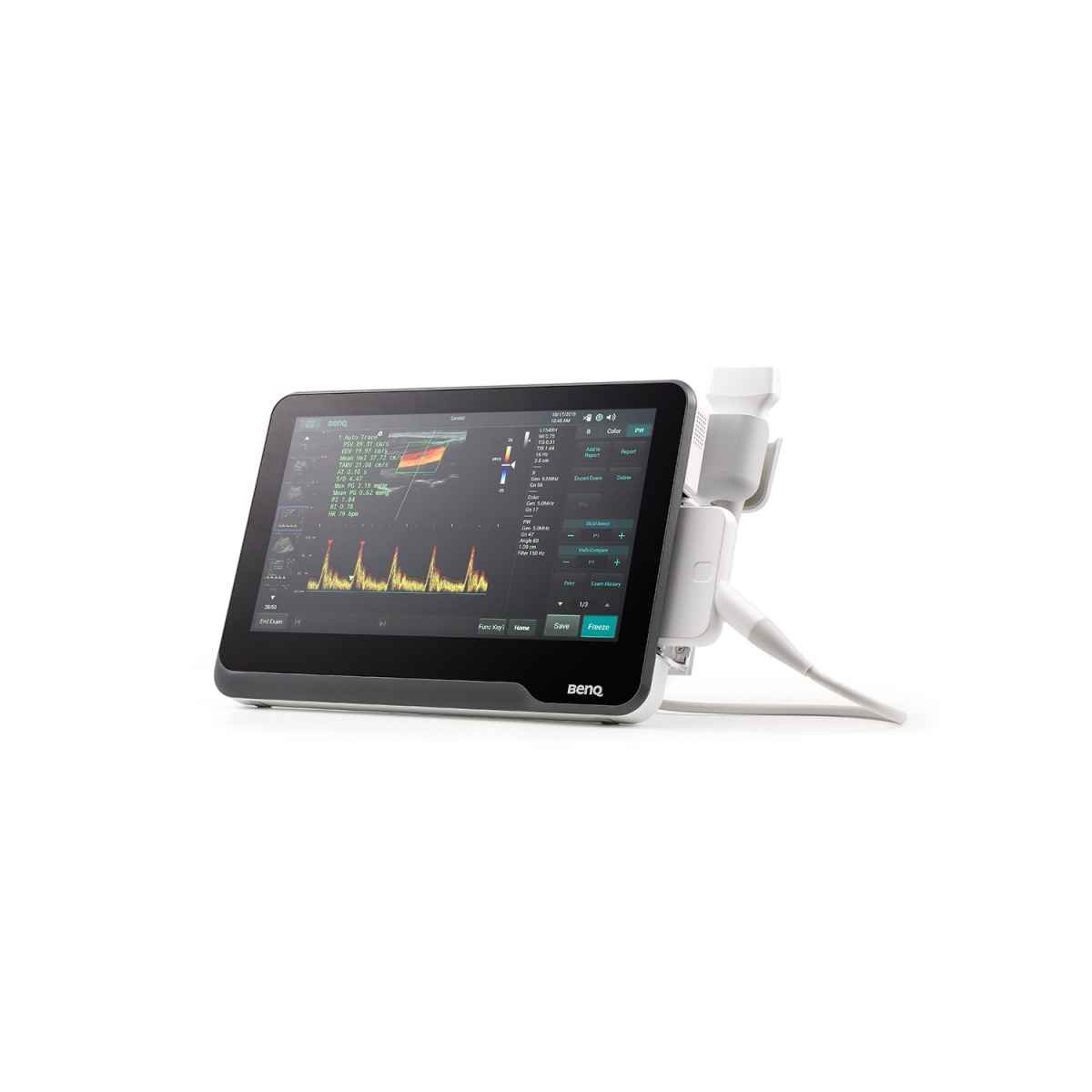

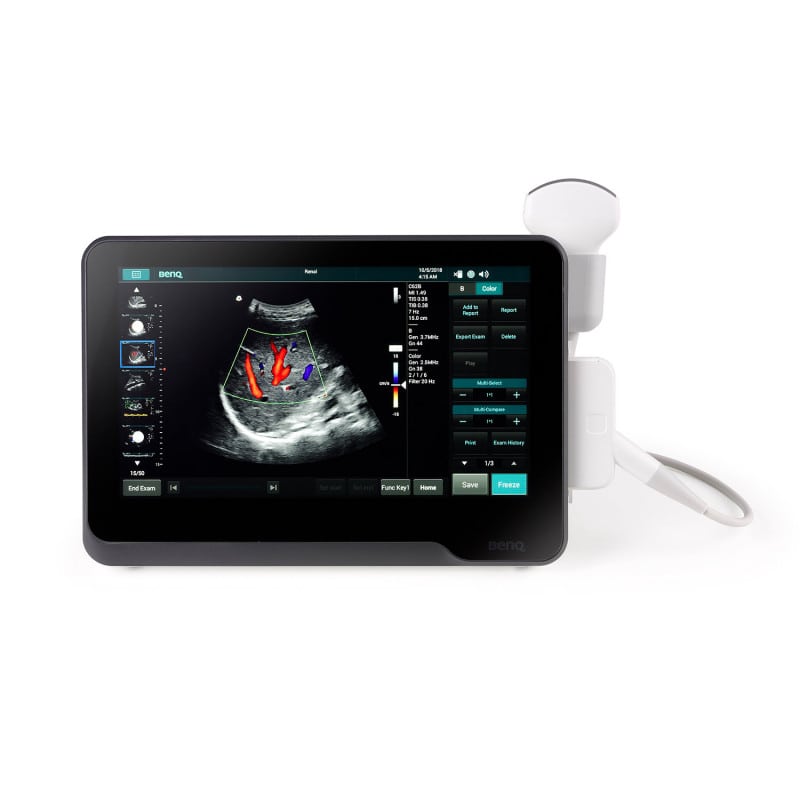

T3300 Ultrasound System
The portable T3300 Ultrasound System from BenQ was specially developed for point-of-care diagnostics and can therefore be used flexibly in the daily routine of a practice or clinic. The splash-proof display enables safe use in all medical fields - whether in cardiology, gynaecology or in the operating theatre.

The user-friendly 13.3'' multi-touchscreen display offers easy operation by even supporting finger gestures. In addition, the T3300 offers many integrated programmes, such as the patient management system and automatic image processing, which guarantee an efficient and simple workflow.

Product Details
T3300 Ultrasound System from BenQ
Portable ultrasound system especially for POC diagnostics
Elegant and compact design
Smart finger gesture support
Boots within 30 seconds
Integrated patient management system
High-resolution image quality
Simple user interface
Splash-proof display
ENV needle development technology
Supports DICOM 3.0
Linking to WIFI and Bluetooth possible
Connectable via USB 3.0, Ethernet, HDMI and I/O interfaces
Automatic image editing with a single button
Features automatic IMT and PX tracking measurement
Battery power lasts up to four hours in stand-by mode, 1.5 hours in continuous mode

Applications
General medicine
Vascular medicine
Abdomen
Gynaecology/Urology
Cardiology
Anaesthesia
Surgery
Intensive care
ENT medicine
Adolescent and paediatric medicine
House calls
Veterinary medicine

Technical Details
Operating system: Android 4.4
13.3'' multi-touch wide-angle display
Modes: B, M, Colour Doppler, Power Doppler, PW Doppler, CW Doppler
Memory: 128 GB SSD card
Data transmission: DICOM 3.0. USB 3.0, HDMI, Ethernet, I/O interfaces, WIFI, Bluetooth
Weight: 2.7 kg
Maximum frame rate: 300 frames/second

Delivery Contents
T3300 Ultrasound System
Mains plug
USB stick with operating instructions and system software as PDF file
