RKU10 Veterinary Ultrasound Machine

Product overview
5.7'' high-resolution LED display
Features 5 display modes
In a soft silicone case for ideal protection and hold
Suitable for left- and right-handers
Including sun cover and carrying strap

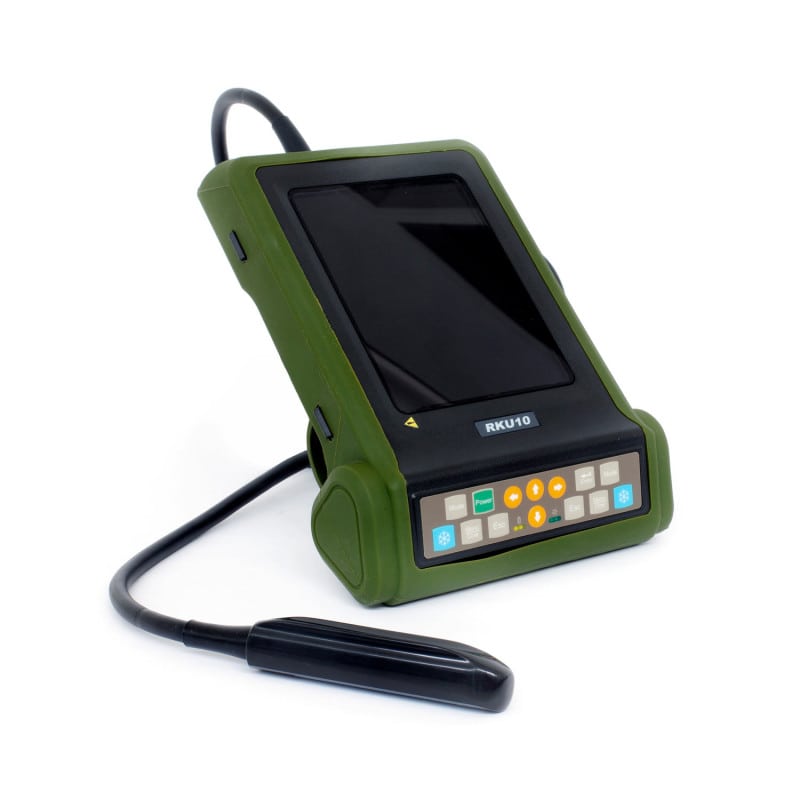

RKU10 Veterinary Ultrasound Machine
The innovative RKU10 veterinary ultrasound scanner from KAIXIN is specially designed for mobile use in veterinary medicine. The high-resolution LED display is splash-proof and easy to clean. Thanks to the high-yield lithium battery, continuous operation of more than 6 hours is possible. With the help of five different display modes, the ultrasound scanner ensures ideal examination conditions.

The sun cover, which can be attached easily and at will using a click system, ensures that the display remains clearly visible even when the sun is shining during outdoor examinations. Thanks to the soft silicone cover, the device is not only reliably protected from dust, but also perfectly protected from shocks and transport damage. In addition, the robust thumb loops ensure secure hold. The carrying strap facilitates handling and offers flexible use. The keyboard with practical direct keys is particularly easy to use and enables a quick and trouble-free examination.

The device is delivered with a rectal linear probe, which is especially suitable for rectal and vaginal examination in sheep, pigs, cattle and horses. The particularly lightweight RKU10 veterinary ultrasound machine can also be supplemented with optionally available probes or with the matching video glasses.

Product Details
RKU10 Veterinary Ultrasound Machine from KAIXIN
Innovative ultrasound device especially for mobile use
In a practical and handy design
Suitable for sheep, pigs, cattle and horses
In a soft silicone cover for a non-slip grip
Splash-proof, dust-proof and easy to clean
Robust thumb loops on both sides for secure handling
Suitable for both right-handed and left-handed users

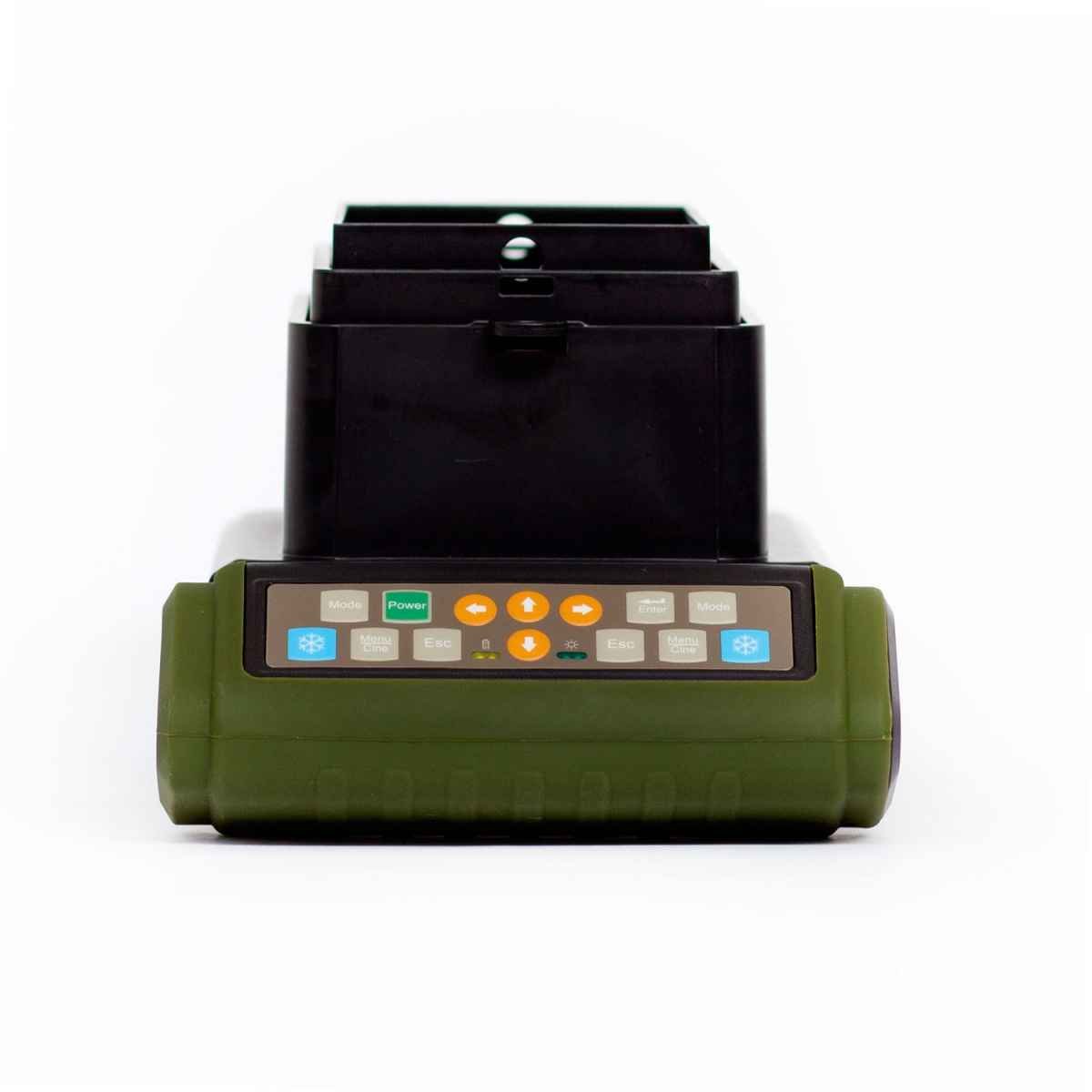

Fast-operating keyboard with direct keys

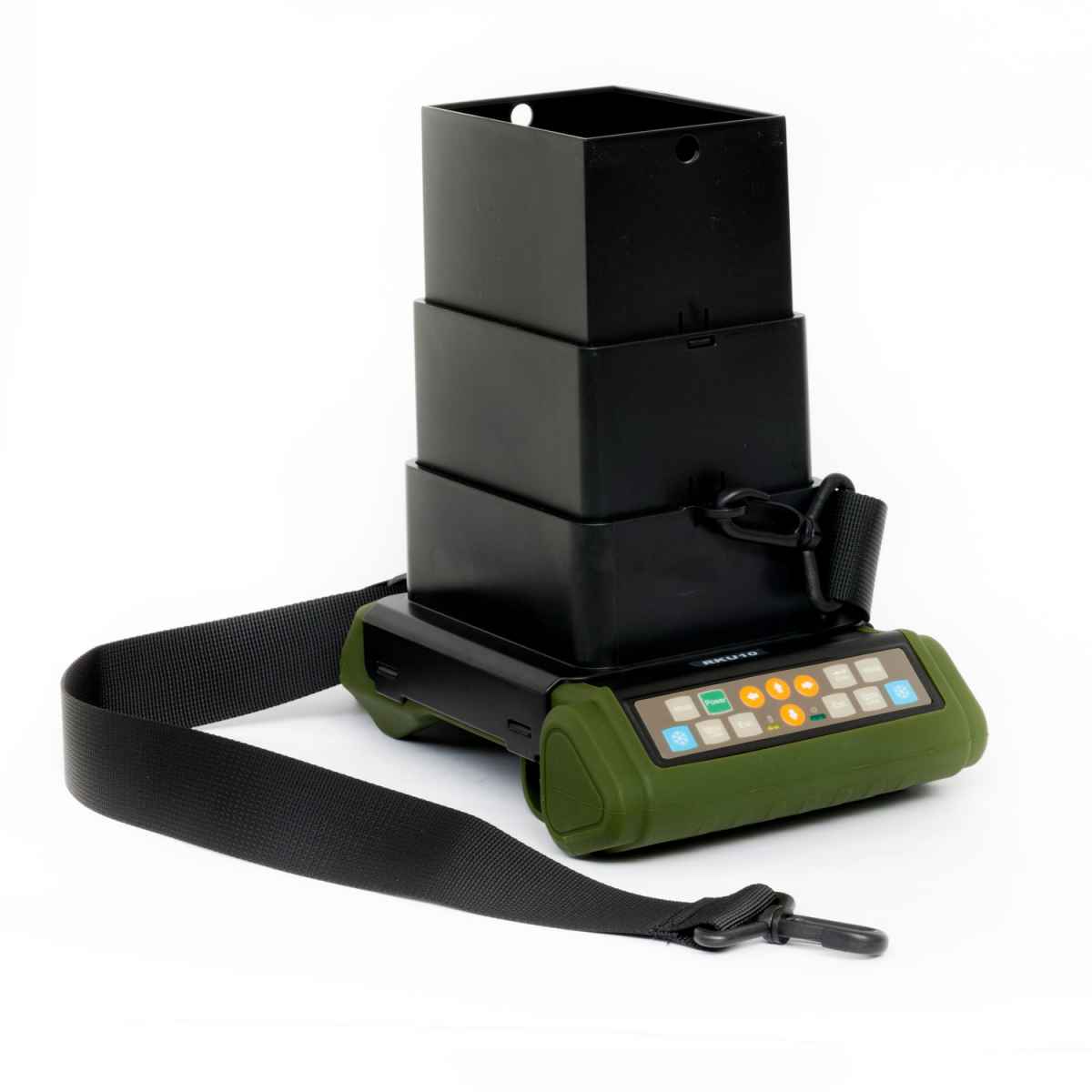

Carrying strap ensures high carrying comfort

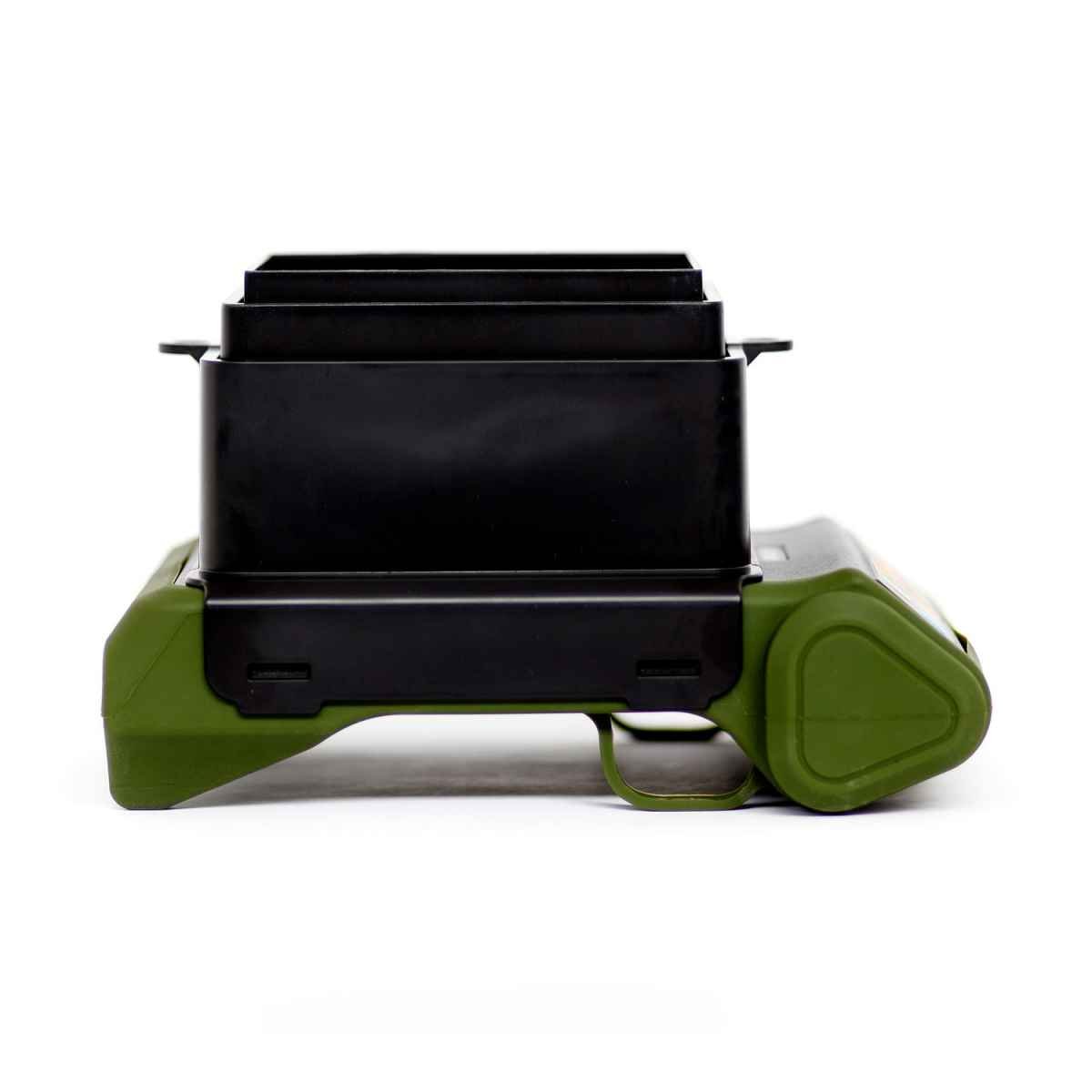

Sun cover included for better visibility outdoors
Automatic calculation of back fat and lean percentage
Recording real-time images in chronological order

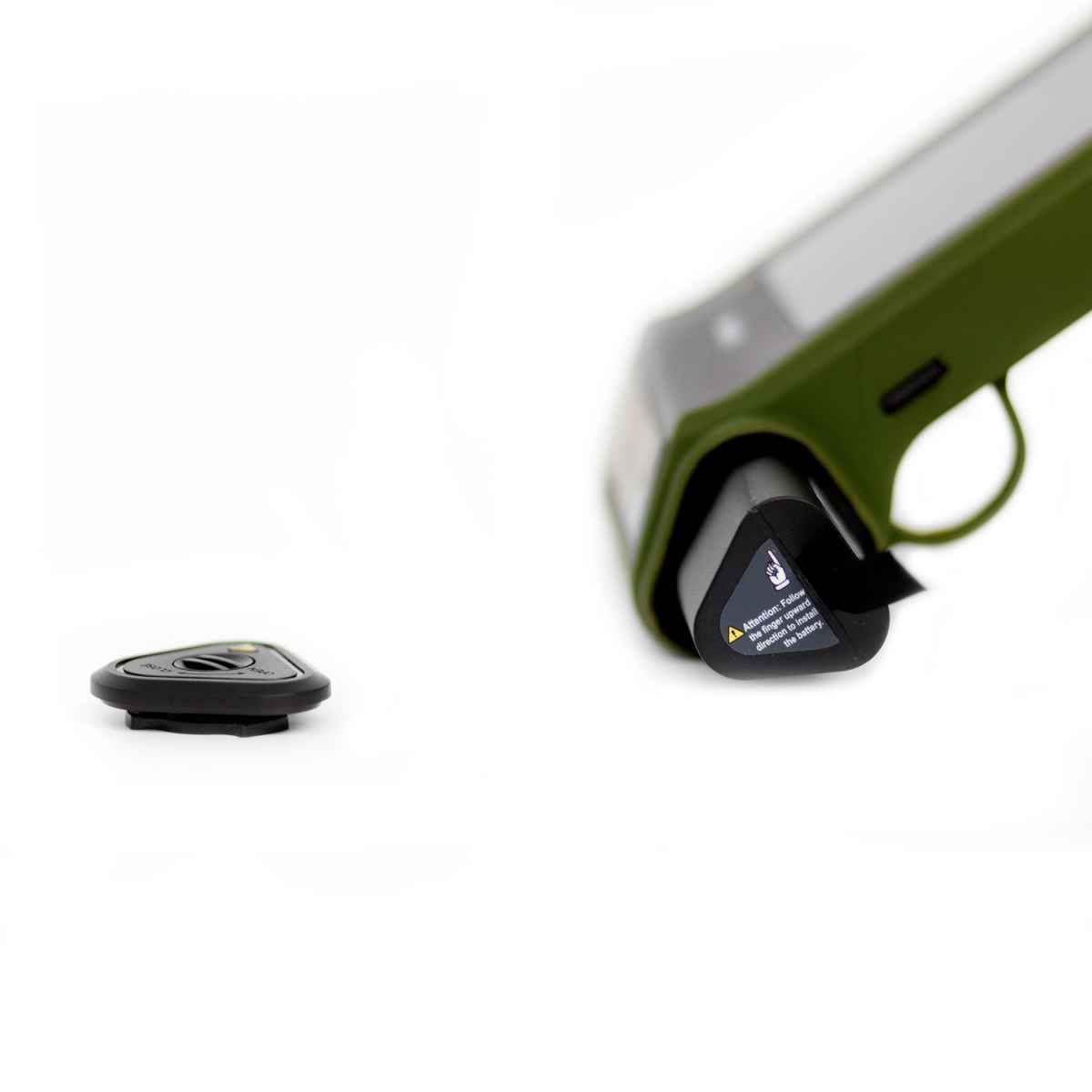

Lithium battery lasts for more than 6 hours of continuous operation
Additional probes, video glasses and accessories are optionally available

Technical Details
High-resolution 5.7'' LED display
Display modes: B, 2B, 4B, B/M and M
Grid: without grid, line grid, dot grid, dot ruler
OB measurement: EDD and GA for cattle, horses, sheep, pigs, goats, llamas, cats and dogs
Cine loop memory: 256 images
Recording of up to 100 images per examination
Data transmission: USB
External data storage on USB stick possible
Supports colour laser printers in printing all types of images and reports
1 probe slot
Weight: 1.1 kg

Delivery Contents
RKU10 Veterinary Ultrasound Machine
Protective rubber cover
6.5 MHz linear rectal probe
Lithium battery
Power supply unit
Charger
Sun cover
Carrying strap
Carrying case
