PM-900 VET Patient Monitor without etCO2 | without printer

Product overview
Veterinary patient monitor
With alarm and calculating function
Optional with etCO2 module
12" TFT-LCD display
Available with or without printer

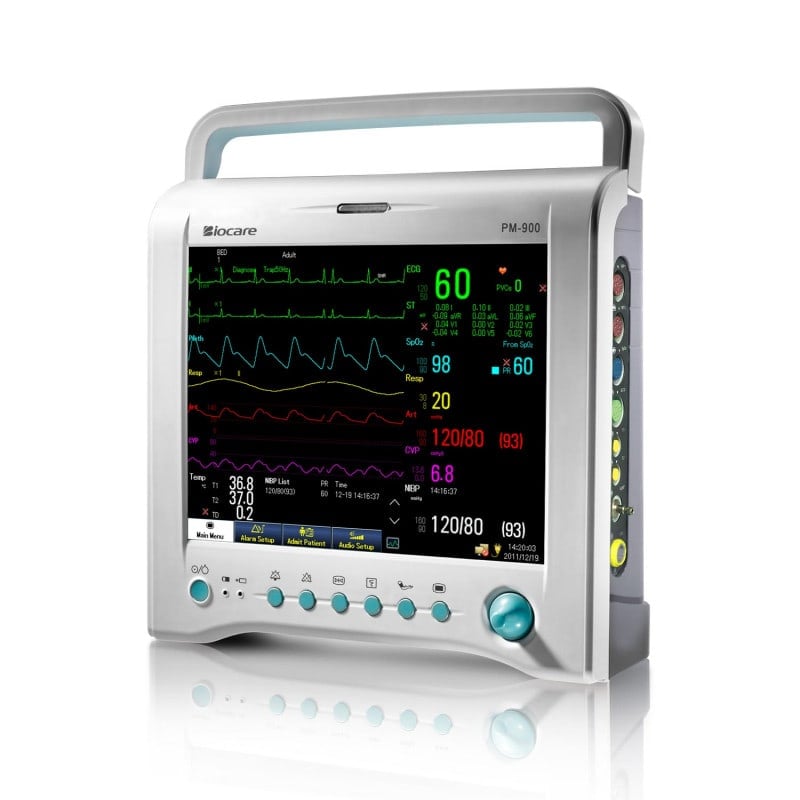

PM-900 VET Patient Monitor
The veterinary Biocare patient monitor PM-900 VET is suitable for monitoring vital signs in animals, e.g. during anaesthesia. The monitor measures ECG, breathing rate, breathwave, temperature, oxygen saturation and pulse rate. One especially handy feature is the visual and acoustic alarm function. It shows both physiological and technical deviations. Additionally, the alarm is divided into the three levels "high", "medium" and "low".

To gain an optimal overview, the colours and curves and the display of the depicted parameters can be manually adjusted on the 12 inch TFT-LCD display. Thanks to the rechargeable Li-ion battery, the device can be used continuously, even in case of power failure. When connected to an AC power source, the device charges, regardless of whether it is switched on or off. The patient monitor PM-900 VET for veterinary use is available with or without integrated printer and/or CO2 module.

Product Details
Patient monitor PM-900 VET
For vital monitoring in animals
With visual and acoustic alarm function
Handy calculating function
Colours of the curve and display area can be adjusted individually
Built-in rechargeable Li-ion battery for up to 5 hours continuous operation

Parameters
ECG
Breathing rate
Breathwave
Temperature
SpO2
Pulse rate
NIBP (MAP)
IBP (optional)
CO2 (optional)

Technical Data
TFT-LCD display with 12 inches and 800 x 600 pixels
Power supply: 100 - 240 V, 50/60 Hz
Li-ion battery battery
Connectors: AC power connector, USB, standard RJ45 network connection, VGA, equipotential bonding connection
Monitor weight: 4kg
Monitor dimensions: 312 x 139 x 305mm

Delivery Contents
Patient monitor PM-900 VET with 12 inch display
5 metal clamp electrodes
5-lead ECG cable
Earthing cable (4m length)
SpO2 probe (ear clip)
SpO2 probe extension (4m)
Three veterinary blood pressure cuffs (sizes: 7-13cm, 10-19cm and 18-26cm)
NIBP tube (3m length)
Temperature probe (rectal)
Mains connector
Li-ion battery
Three NIBP cuff labels
