M6 Vet Monitor M6E

Product overview
Spot and monitoring mode
Parameters measured: SpO2, NIBP, pulse, temperature
With integrated memory
Accessories included
Battery-operated

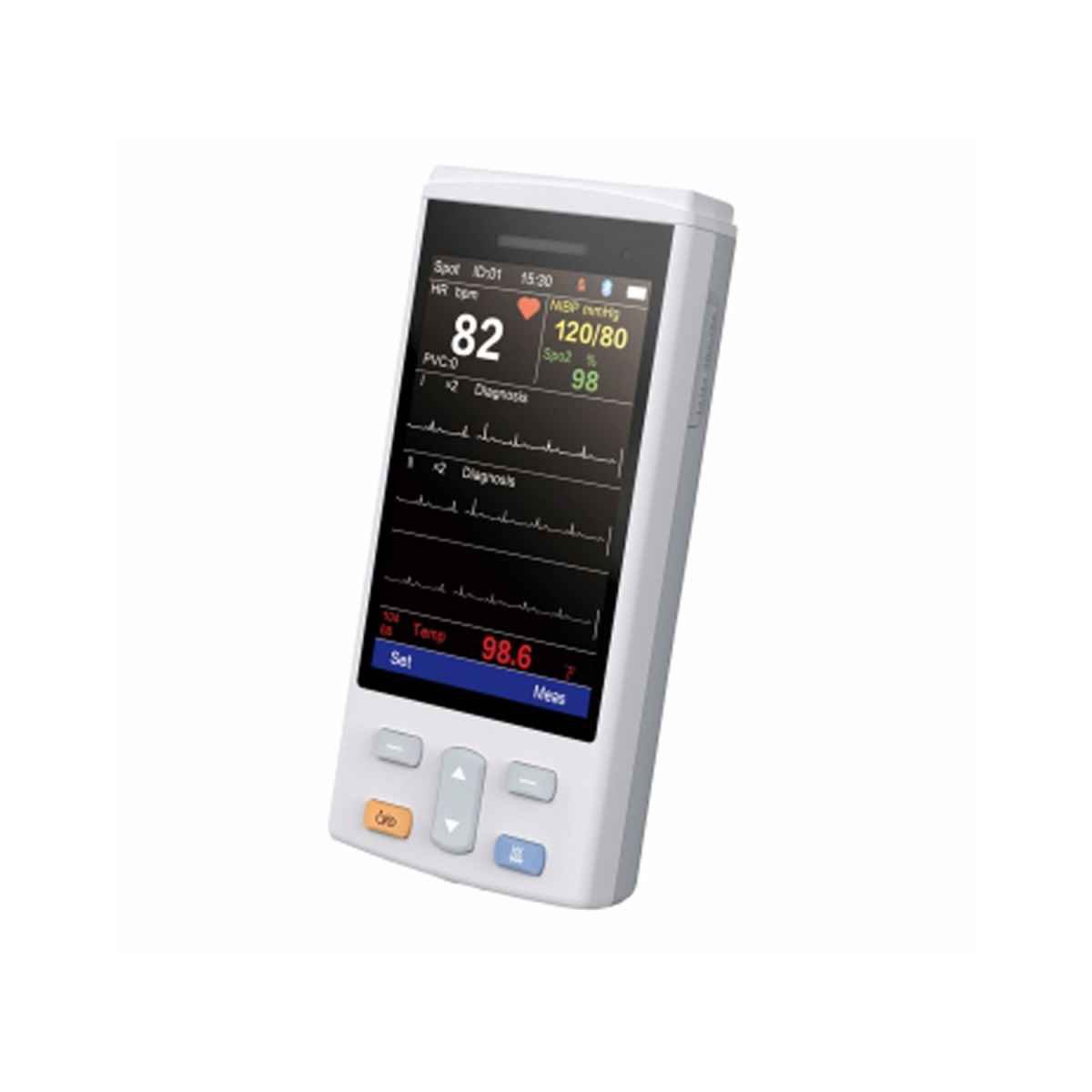

M6 Vet Monitor

The M6S handheld veterinary monitor is used to monitor the vital signs of dogs and cats. The device measures oxygen saturation, temperature, blood pressure and pulse rate.Depending on the model, heart activity (ECG), the mainstream or the sidestream EtCO2 value can also be measured. Thanks to different cuffs, the monitor can be used in an uncomplicated and flexible way.

The internal memory has a capacity for 100 patients with 200 readings each in spot mode. This mode is mainly used for measuring individual values. The monitoring mode is suitable for permanent monitoring, for example for anaesthesia monitoring. In this mode, up to 48 hours of measurement data can be stored. The data can be transferred to a PC via the USB cable.

Please Note: The M6E monitor with Mainstream EtCO2 and the M6SE monitor with Sidestream EtCO2 do NOT have an ECG function.

Product Details

M6 Vet Monitor from TooToo Meditech
For monitoring vital signs in dogs and cats
Has two modes: spot and monitoring mode
Adjustable upper and lower alarm limits
Particularly handy and lightweight
Measured parameters: ECG, SpO2, NIBP, temperature
With internal memory
Battery-operated
Accessories included
Optionally with ECG, mainstream or sidestream EtCO2 measurement
Warranty: 18 months
Delivery contents: 1 piece

Technical Data

4.3'' colour TFT display
Resolution: 320 x 480
Internal memory: 100 patients, 200 records each
Data transmission: USB
Battery: 3.7V lithium-ion battery
Battery capacity: eight hours continuous operation
Monitor weight: 250 g
Power supply: 50/60 Hz

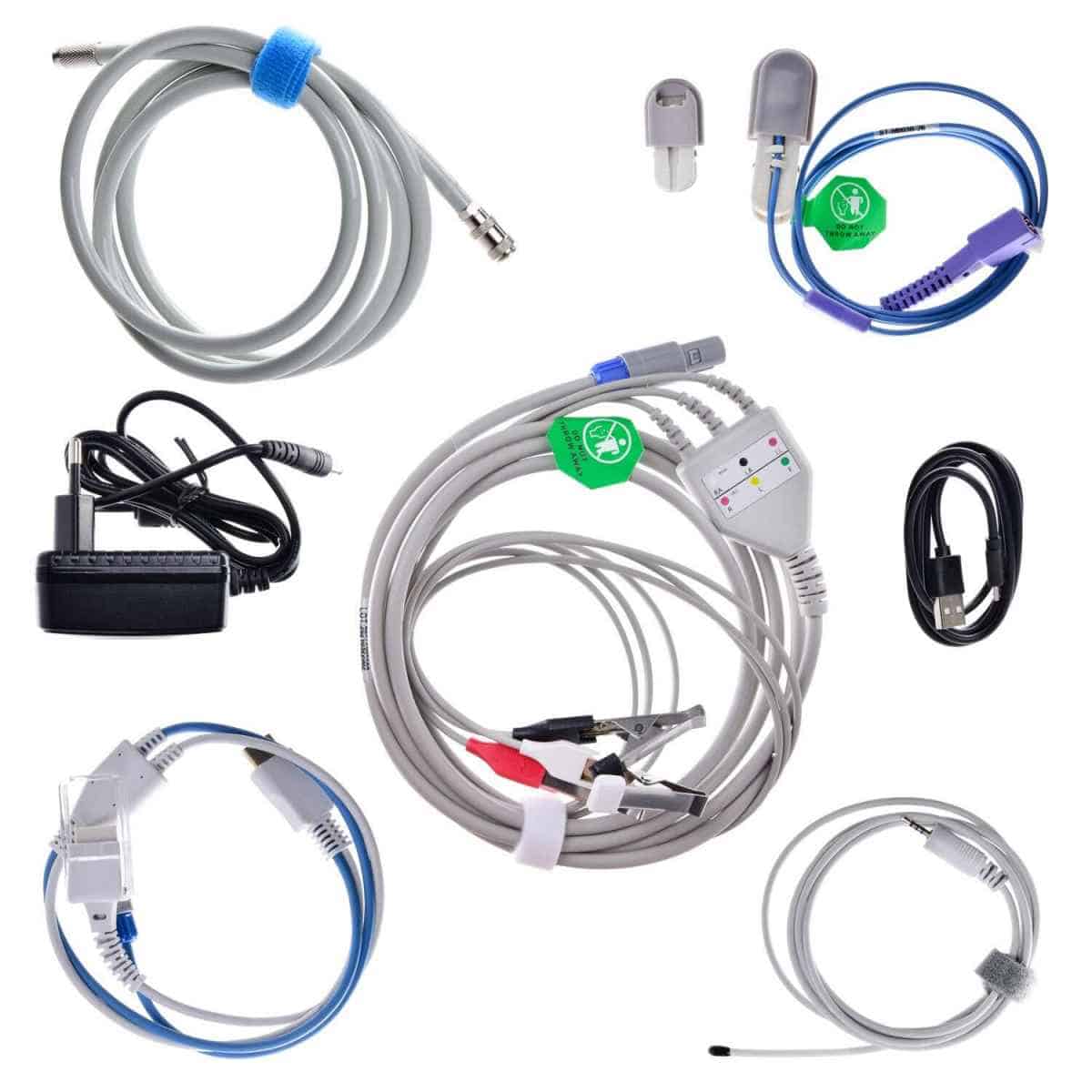

Delivery Contents

M6 Vet Monitor
Five blood pressure cuffs (3 - 6 cm, 4 - 8 cm, 6 - 11 cm, 7 - 13 cm, 8 - 15 cm)
NIBP tube
SpO2 cable
2 SpO2 clips (large and small)
ECG cable + clips
Rectal temperature probe
Trunk cable for ECG and SpO2 sensor
USB cable
Charging cable
