KÄRCHER HD 8/18-4 M

Product overview
Mobile and robust high-pressure washer
EASY!Force high-pressure gun reduces holding force
EASY!Lock quick-release fasteners for fast set-up and dismounting
Water quantity & working pressure adjustable at the gun
With automatic pressure relief & fine water filter

KÄRCHER HD 8/18-4 M

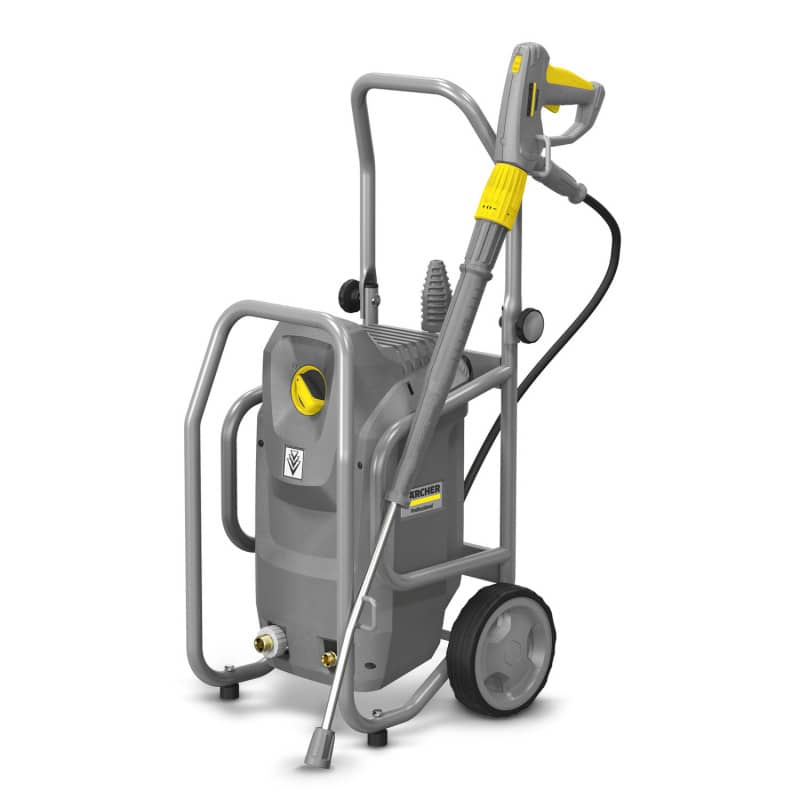

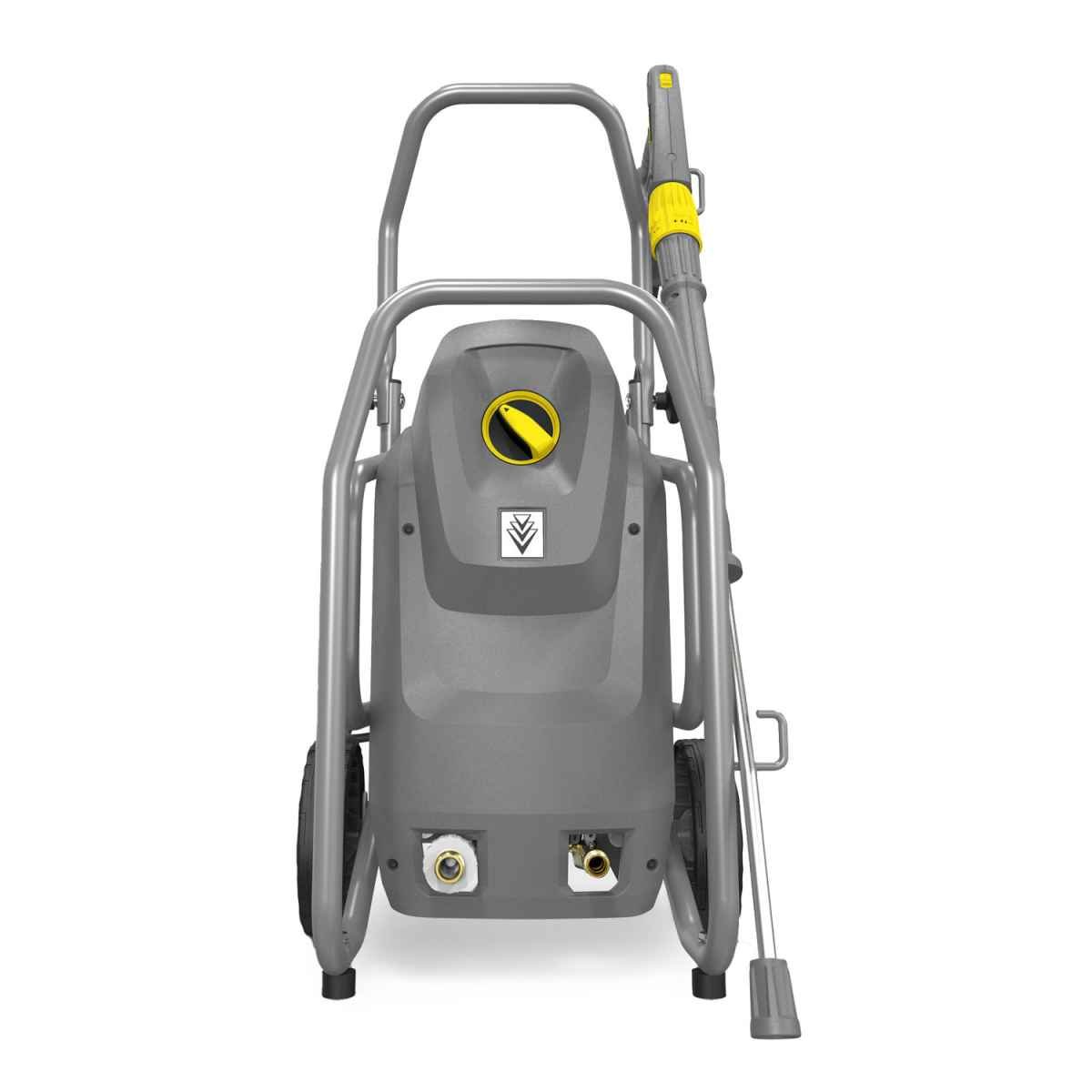

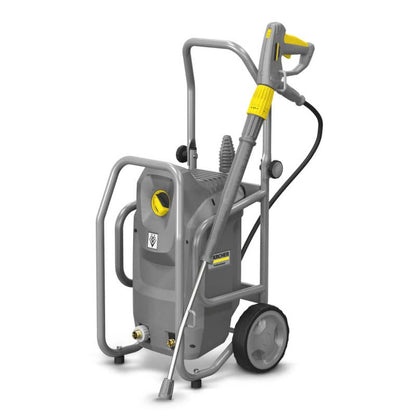

The KÄRCHER HD 8/18-4 M is a compact, mobile and powerful cold water high-pressure cleaner with a powder-coated steel tube frame that protects all components from damage. The unit is also designed for vertical and horizontal operation as required and thus offers its user maximum flexibility and stability.

The efficient high-pressure cleaner from KÄRCHER is equipped with an EASY!Force high-pressure gun, which exploits the recoil force of the high-pressure jet to reduce the holding force to zero to guarantee fatigue-free operation. The EASY!Lock quick-release fasteners, on the other hand, ensure time-saving set-up and dismounting. In addition, water quantity and working pressure can be regulated directly on the gun by means of Servo Control.

The high-pressure cleaner is driven by a 4-pole, slow-running three-phase motor with pressure switch control. The built-in 3-piston axial pump with high-quality brass cylinder head reduces energy consumption by around 20 %. Automatic pressure relief and a large fine water filter are integrated as standard to protect the high-pressure components.

Product Details
KÄRCHER HD 8/18-4 M
Mobile high-pressure cleaner in robust cage design
Powder-coated tubular steel frame
Designed for vertical and horizontal operation
Offers the user a high degree of flexibility and stability
EASY!Force high-pressure gun reduces holding force to zero
EASY!Lock quick-release fasteners ensure fast handling
Particularly robust and durable
Water quantity and working pressure adjustable with ServoControl on the gun
4-pole, slow-running three-phase motor with pressure switch control
3-piston axial pump with brass cylinder head reduces energy consumption by 20 %
Easy access to the cylinder head via the open underside of the unit
Quick access to the electrical box by simply removing the device cover
With automatic pressure relief and large fine water filter
Perfect for large animal practices, animal shelters, abattoirs and breeding farms
Manufacturer's warranty: 24 months

Technical Data
Current: 3 Ph / 400 V / 50 Hz
Water flow rate: 760 l/h
Working pressure: 30 - 180 bar / 3 - 18 MPa
Max. Pressure: 270 bar / 27 MPa
Connection load: 4.6 kW
Connection cable: 5 m
Weight: 44,1 kg
Dimensions (L x W x H): 460 x 420 x 970 mm

Equipment
EASY!Force high-pressure gun with ServoControl regulation
High pressure hose (15 m)
Spray lance (840 mm)
Power nozzle 25
Dirt blaster
Cup foam lance
