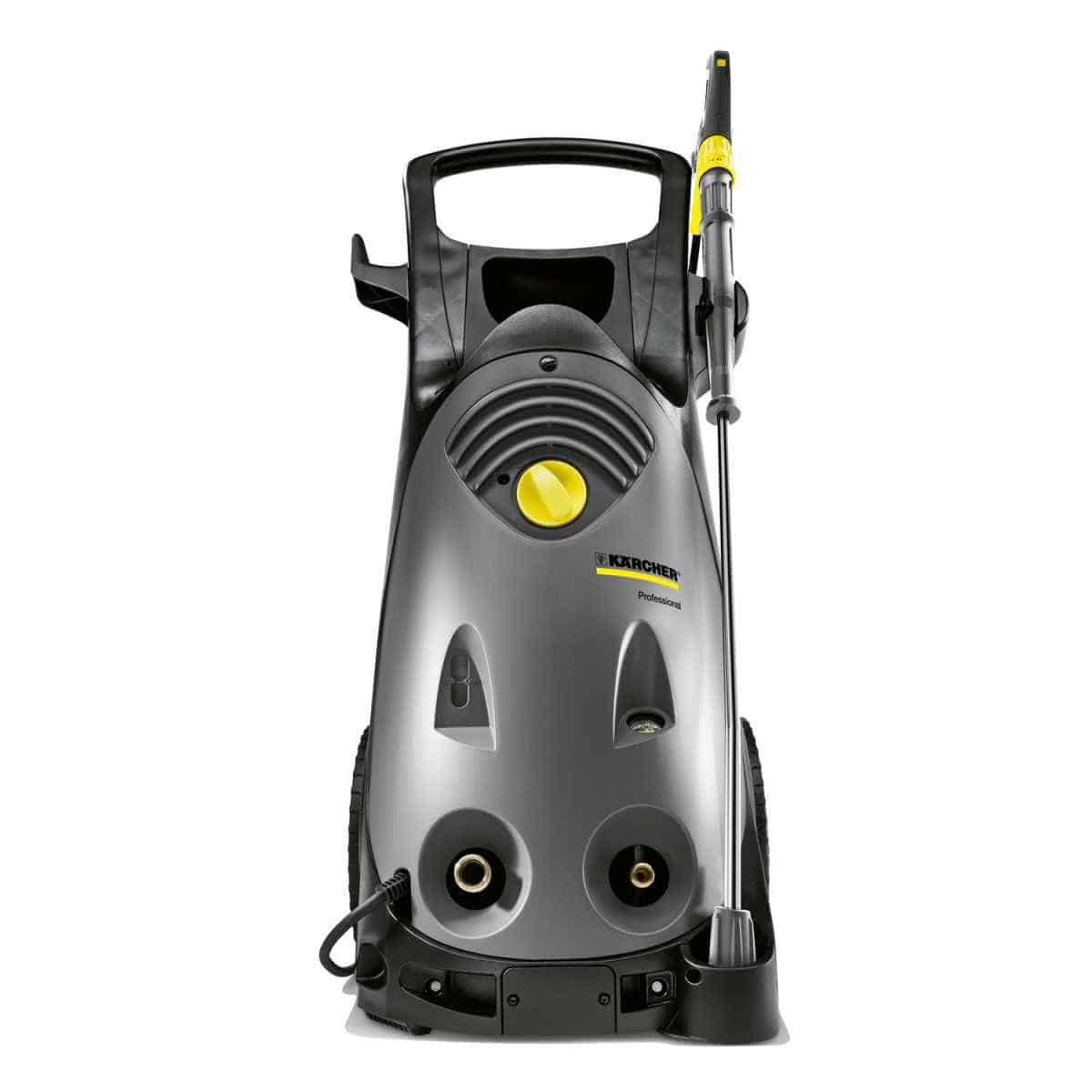

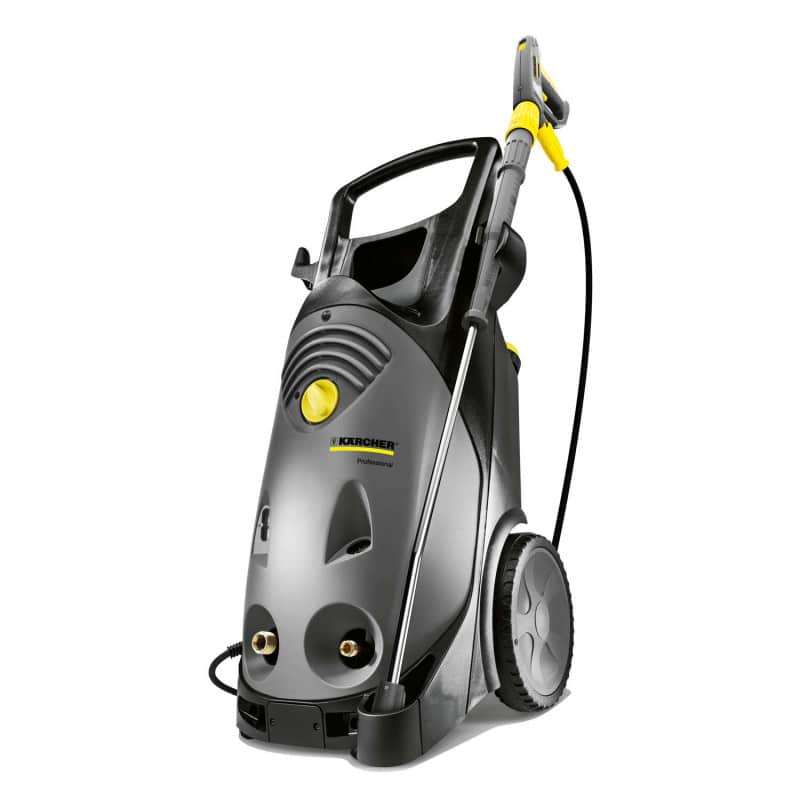

KÄRCHER HD 17/14-4 S PLUS

Product overview
Mobile cold water high-pressure washer
Immense flushing effect of around 1700 l/h
Rubber tyred wheels for good manoeuvrability
Effortless operation thanks to EASY!Force high-pressure gun
Water pressure and quantity adjustable on the gun

KÄRCHER HD 17/14-4 S PLUS
The mobile and powerful KÄRCHER HD 17/14-4 S PLUS cold water high-pressure cleaner is ideal for daily use, even with heavy soiling, thanks to its immense flushing action of around 1700 l/h. Thanks to its large, rubber-tyred wheels, it is easy to handle and manoeuvre even on rough terrain.

Its EASY!Force high-pressure gun uses the recoil force of the high-pressure jet to reduce the holding force to zero, thus ensuring fatigue-free working. In addition, the EASY!Force quick-release fasteners make it easy to connect the individual components and guarantee fast handling. Both the water pressure and the water quantity can be regulated directly at the gun. When the gun is closed, the motor and pump switch off automatically.

Product Details
KÄRCHER HD 17/14-4 S PLUS
Mobile and powerful cold water high-pressure cleaner
Immense flushing effect of around 1700 l/h
For daily use even with heavy soiling
Space-saving design for vertical operation
Large, rubber-tyred wheels for good manoeuvrability
Fatigue-free operation and time-saving set-up and dismantling
EASY!Force spray gun reduces the holding force to zero
EASY!Lock quick-release fasteners ensure fast handling
Automatic shutdown of motor and pump when gun is closed
Anti-twist system prevents twisting of the high-pressure hoses
Water pressure and quantity directly adjustable at the gun
With 4-pole three-phase motor with air and water cooling
Equipped with a robust brass cylinder head and ceramic pistons
Reinforced, shatterproof plastic chassis
Protection against phase failure, overvoltage and undervoltage
Easy and ergonomic transport
For agriculture, stable cleaning, animal shelters and large animal practices
Manufacturer's warranty: 24 months

Technical Details
Current type: 3 Ph / 400 V / 50 Hz
Flow rate: 650 - 1700 l/h
Operating pressure: 30 - 140 bar / 3 - 14 MPa
Max. pressure: 154 bar / 15.4 MPa
Connection load: 9.4 kW
Weight (with accessories): 72,2 kg
Dimensions: 560 x 500 x 1090 mm (L x W x H)

Equipment
Trigger gun, EASY!Force Advanced
Trigger gun with soft grip
High-pressure hose, 10 m
Spray lance, 1050 mm
Power nozzle
Dirt Blaster spray lance
4-pole three-phase motor with air and water cooling
Pressure switch control
Integrated fine mesh water filter
Electronic motor protection system with LED display
Oil sight glass
ServoControl
Brass water inlet fitting
