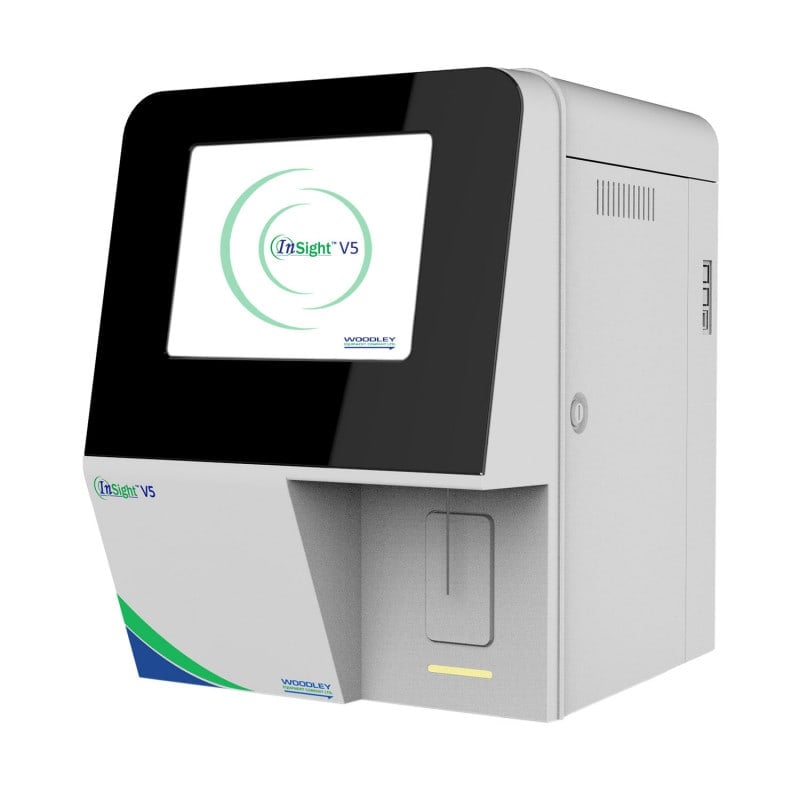

InSight V5 VET Haematology Analyser

Product overview
Determination of 23 parameters
Fully automated procedure
Sample material: whole blood
Analysis time: 60 seconds
Memory and thermal printer included

InSight V5 VET Haematology Analyser
With the InSight V5 Haematology Analyser, blood tests can be carried out quickly and easily in veterinary laboratories. Up to 23 parameters are determined from the whole blood of animals - in only 60 seconds. The most common animal species are already preset and in addition 20 further animal species and the corresponding parameters can be added manually.

The menu-driven user interface, the touchscreen colour display and the built-in thermal printer allow particularly user-friendly operation.

In addition, the analyser can be connected to various external devices: These include a keyboard or mouse for control, a printer to print reports and other information displayed on the screen, a barcode scanner to enter barcode information easily and quickly, and a USB stick to export measurement data.

Product Details
InSight V5 Haematology Analyser
Quick and easy blood analysis in the veterinary laboratory
Quantitative, automatic haematology analyser
With 5-part differentiation
Sample material: whole blood
Low sample volume of 15μ
Analysis time: 60 seconds
23 parameters can be determined
Fully automated procedure
Easy-to-use, menu-driven user interface
Large and user-friendly colour touch screen
Preset animal species: dog, cat, rabbit, horse and cattle
A further 20 animal species and associated parameters can be added manually
Internal memory for up to 50,000 measurement results
Compact bench-top size
Keyboard, mouse, barcode scanner, printer and USB stick can be connected via four USB interfaces
Can be integrated into the practice management system via LAN connection
Low maintenance requirement

Technical Details
One LAN interface
4 USB interfaces
Backlit 10.4" LCD colour touch screen, 800 x 600 resolution
Built-in thermal printer
Dimensions: 36 (W) x 43 (D) x 50 (H) cm
Weight: 28 kg
Power supply: 100 - 240 V AC
