InSight V-IA VET Immunoassay Analyser

Product overview
With immunofluorescence technology
Reference laboratory quality
Different analysis modes
Precise results in 3 - 15 min.
Maintenance-free

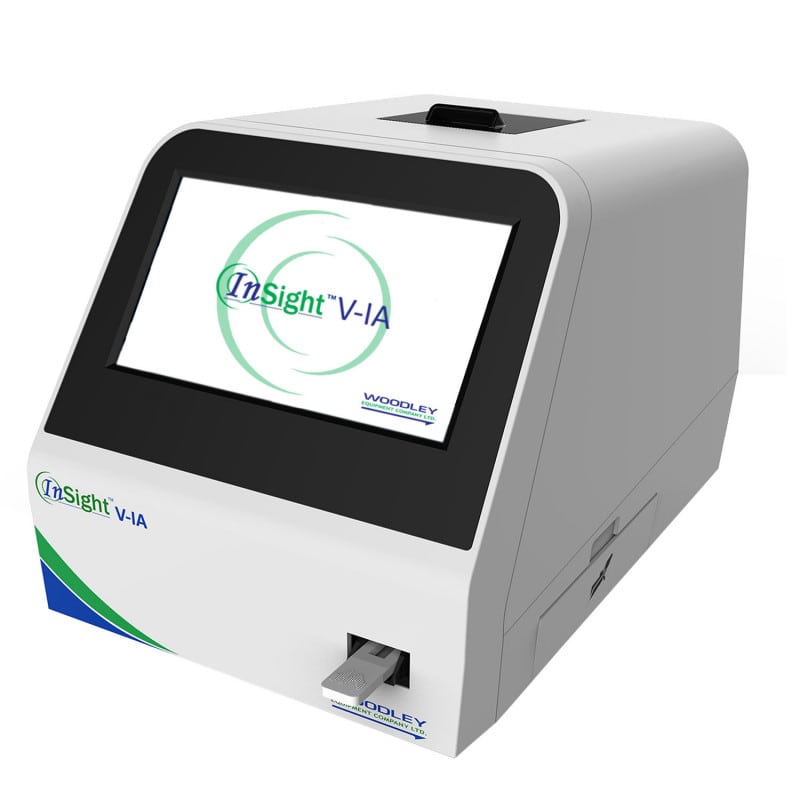

InSight V-IA VET Immunoassay Analyser
The InSight V-IA veterinary immunoassay analyser is used in veterinary medicine to determine progesterone, THS, cortisol and many other parameters. The easy-to-use touchscreen device delivers reliable and accurate results in just a few minutes. In addition, the analyser has an internal memory, a built-in thermal printer and different analysis modes.

Product Details
Insight V-IA VET Immunoassay Analyser
For veterinary laboratory diagnostics
With immunofluorescence technology
Results in only 3 - 15 minutes
Sample material: whole blood, serum and plasma
Precise and reliable
Offers reference laboratory quality
Standard and instant test mode
Previous test results available at any time
User-friendly touch screen
Multilingual operating system
Built-in thermal printer
Internal memory included
Maintenance-free

Technical Data
Power adapter: 100 - 240 V, 50 - 60 Hz
24-bit colour LCD touch screen
Memory: ID card with 4K memory
Connections: four USB ports, Ethernet port, dual serial port (for automatic LIS upload and PC setup)
Dimensions: 21.3 (W) x 30.3 (D) x 21 (H) cm
Weight: 4 kg

Available Test Cassettes
Progesterone
TH4
TSH
Cortisol
cCRP
fSAA
D-dimer
HbA1C
cPL
fPL
NT-proBNP
Quality control

The Different Test Modes
In standard test mode, the cassette is inserted into the unit immediately after application of the sample. The analyser then counts down the reaction time, analyses the cassette and displays the results.

If the instant test mode is selected, a separate timer must be used. The cassette is loaded with the sample, the timer is activated and only after the time has elapsed is the cassette inserted into the unit and analysed.

Test Procedure
Insert the ID code chip of the respective cassette and select "Read ID Card". Enter the patient data. Prepare the sample according to the respective test cassette instructions for use and place the sample in the test cassette.

If the standard test mode is selected, insert the test cassette into the cassette holder. If the instant test mode is selected, start a timer and insert the cassette only after the time has elapsed.

After each test, the result is displayed on the screen and automatically printed with the internal thermal printer. The system also saves the results in the analyser's built-in memory. These can be called up, exported or printed at any time.
