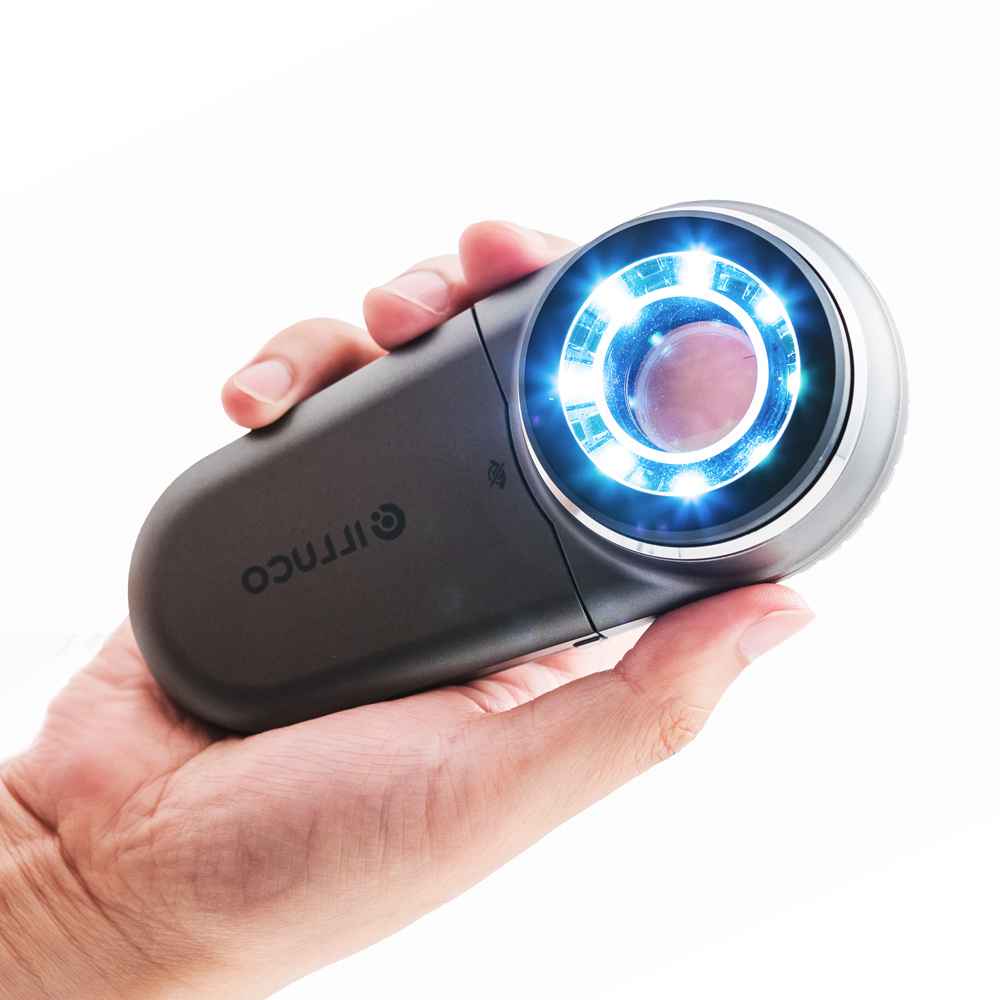

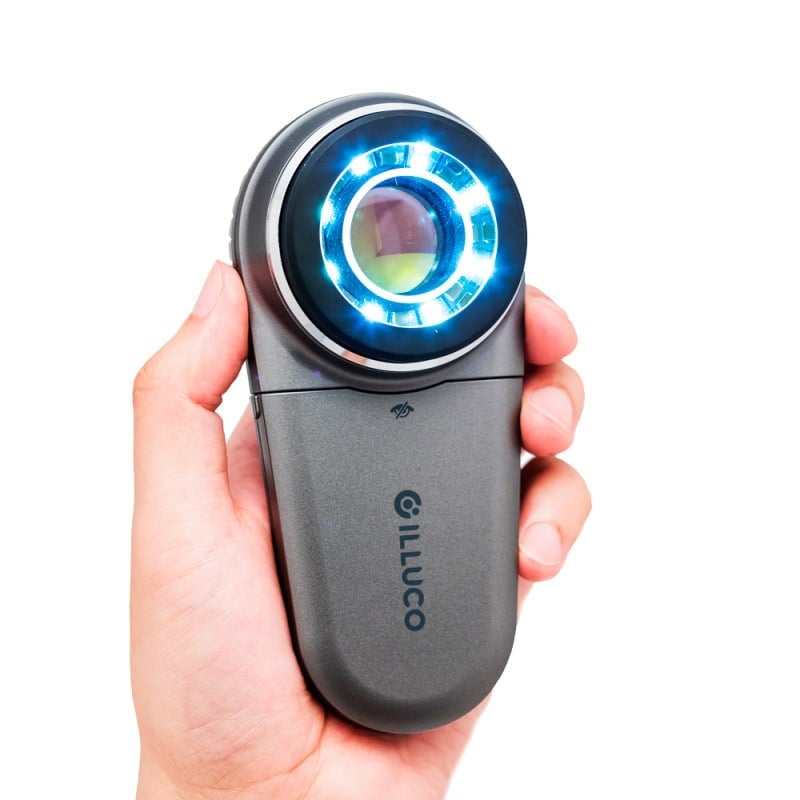

Illuco IDS-1100 Dermatoscope

Product overview
Small, practical dermatoscope
Polarised light can be switched on
Brightness adjustable in 3 steps
25 mm precision optics, 10x magnification
Smartphone compatible with optional adapter

Illuco IDS-1100 Dermatoscope
The Illuco IDS-1100 from DermoScan is a compact dermatoscope characterised by simple operation and a high-resolution precision lens. The illumination can be switched between polarised and non-polarised light, depending on the application. Therefore, the user can choose between non-contact dermoscopy and contact dermoscopy with an immersion liquid.

The Illuco dermatoscope offers 10x magnification, 3-stage brightness regulation and 5,000 Kelvin colour temperature. The integrated rechargeable battery only needs 3 hours to be fully charged using a micro USB cable.

Through use of the separately available adapter, this dermatoscope can also be deployed with compatible smartphones and tablets.

Product Details
Illuco IDS-1100 dermatoscope
25 mm, high-resolution precision lens
Distortion-free representation
Brightness regulable in 3 stages
10x magnification
Colour temperature: 5,000 Kelvin
Settable to polarised and non-polarised mode

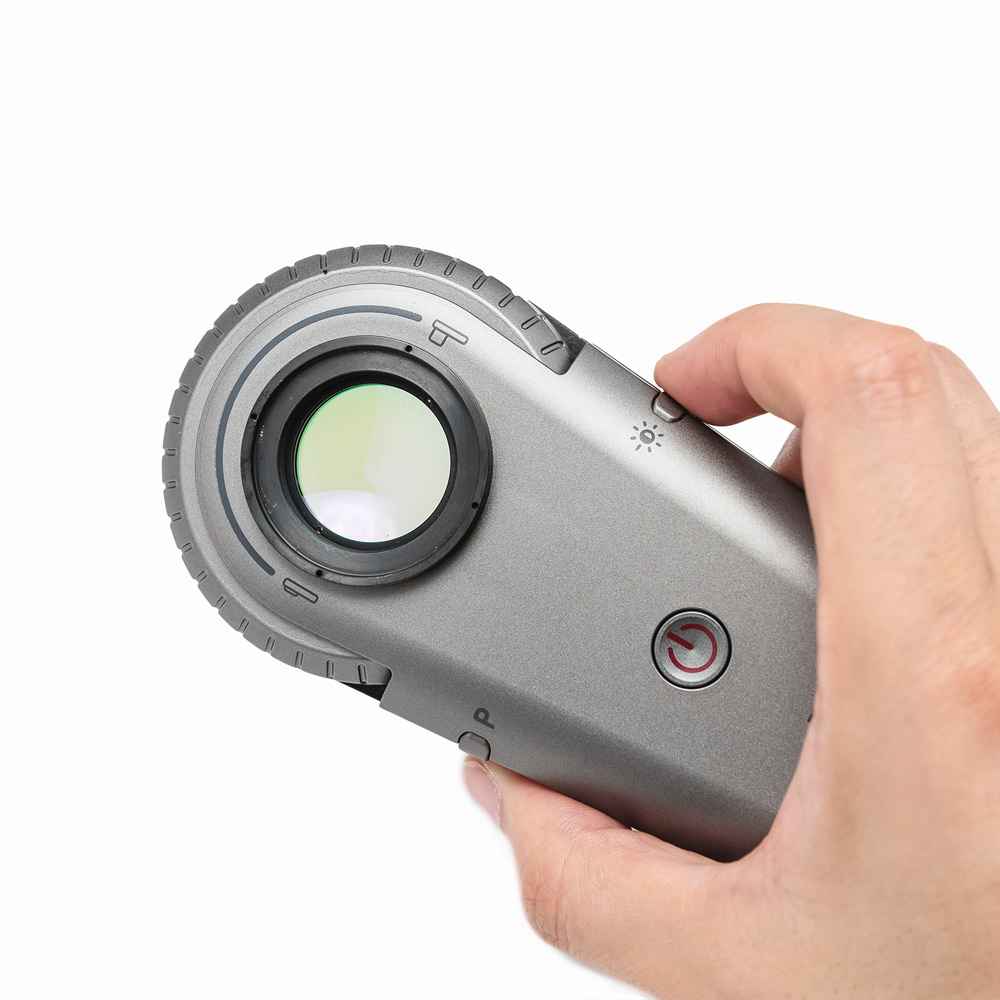

Single-handed operation: all operating elements are centrally located
Compact, ultra light and flat–sits great in your hand
Useable in polarisation mode or with an immersion liquid
Removable contact plate with 10 mm scale, easy to clean
Automatic shutdown after 5 minutes to save energy
Visual range: approx. 1 cm at 10 cm distance from eyes
With rechargeable Lithium-Ion battery (1,150 mAH/3.7V), provides approx. 2 hours of continuous use
Battery charge time: approx. 3 hours
With battery charge level display
Dimensions: 138 x 65 x 33 mm
Weight: approx. 190 g
LED lifespan: over 100,000 operating hours
Compatible with various smartphones/tablets (specific adapter must be ordered)
Small contact plate for difficult to reach areas separately available
7 year manufacturer warranty

Possible Applications for the Illuco IDS-1100 Dermatoscope
Early skin cancer screenings
Examination of skin diseases
Diagnosing scabies and phthiriasis
Wart diagnostics
Diagnosis of fungal infections
Identification of hair and scalp diseases
Determination of tissue to be removed due to difficult to define skin cancer

The Illuco IDS-1100 dermatoscope comes delivered with the compatible micro USB charging cable, a cleaning cloth and the user handbook.
