Hettich EBA 270

Product overview
Capacity: 6 x 15 ml tubes
Smooth plastic housing for easy cleaning
With lid lock and emergency release
Variably adjustable rotation/run time
With swing-out rotor

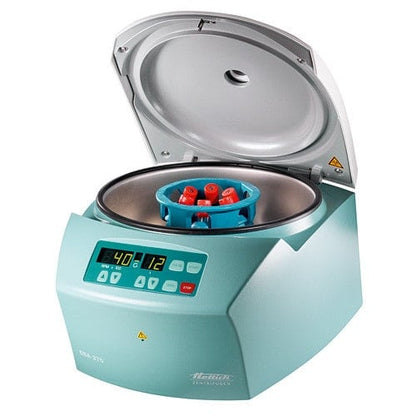

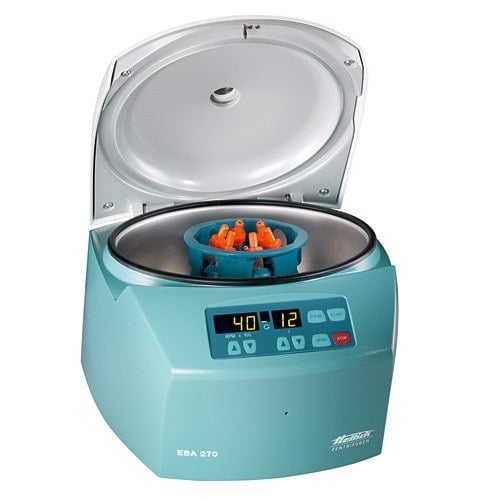

Hettich EBA 270 Benchtop Centrifuge
The EBA 270 by Hettich is a benchtop centrifuge designed for the needs of medium-sized medical practices. The Hettich EBA 270 allows for centrifuging all common blood collection tubes and urine tubes up to a volume of 15 ml.

The maximum rotational speed for this centrifuge is 4,000 min-1. Rotation speed and running time can be quickly and easily set on the keypad. In order to prevent the EBA 270 from opening during the centrifuging process, the centrifuge is equipped with a lid locking and holding mechanism. The lid can only be unlocked and opened when at rest. Because its smooth plastic housing, it is very easy to clean, making the benchtop centrifuge perfectly suited for the hygiene standards of the practice laboratory.

In contrast to the Hettich EBA 200, which has an angle rotor, the EBA 270 has a swing-out rotor which is particularly suitable for sedimentation in smaller gravity fields. Hettich centrifuges are characterised by their simple operation and high reliability.

Product Details
Hettich EBA 270 centrifuge
Benchtop centrifuge with swing-out rotor
Specially developed for the medical practice and the medical laboratory
Adjustable rotation speed and run time (rotation speed in RPM, input in increments of 100; time t/min, input in minutes, max. 99 min)

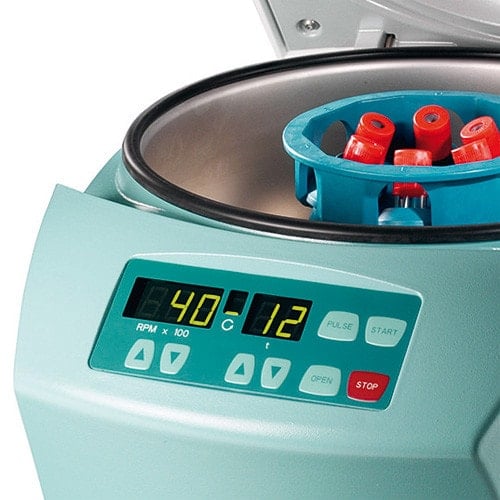

Parameters indicated on the display during the centrifuging process
Pulse key for short spin times
Push button lid opening
Including lid locking and holding mechanism
Emergency release
Metal lid and lid lock
Auto-imbalance detection and shut-off
Flexibly mounted engine - quiet operation, even with slight imbalance
Smooth plastic housing - easy to clean
Centrifuge arm made from high-grade stainless steel, seamlessly deep-drawn
Suitable for PRP production depending on the design of the tubes

Technical Details
Voltage: 200 - 240 V
Frequency: 50 - 60 Hz
Connected load: 130 VA
Max. capacity: 6 x 15 ml tubes
Max. RPM: 4,000 min-1
Max. RCF: 2,254
Running time: 1 - 99 min, continuous run, short run (pulse key)
Dimensions: 23.9 x 32.6 x 38.9 cm
Weight: approx. 14 kg
Air cooling

Delivery Contents
1 connection cable
2 fuse links power input
1 unlocking pin
1 open-end spanner
1 allen key for transport lock
1 rotor
6 hangers 10 ml
6 hangers 5 ml
1 information sheet on transport locks
1 instruction manual
