Eko DUO 2nd Generation VET

Product overview
Digital stethoscope with integrated amplifier and single-lead ECG
Enables early detection of heart disease
32x sound amplification, adjustable in 12 steps
Can be used with the stethoscope tube or wirelessly with Bluetooth headphones
Real-time display, evaluation and storage of data in free app

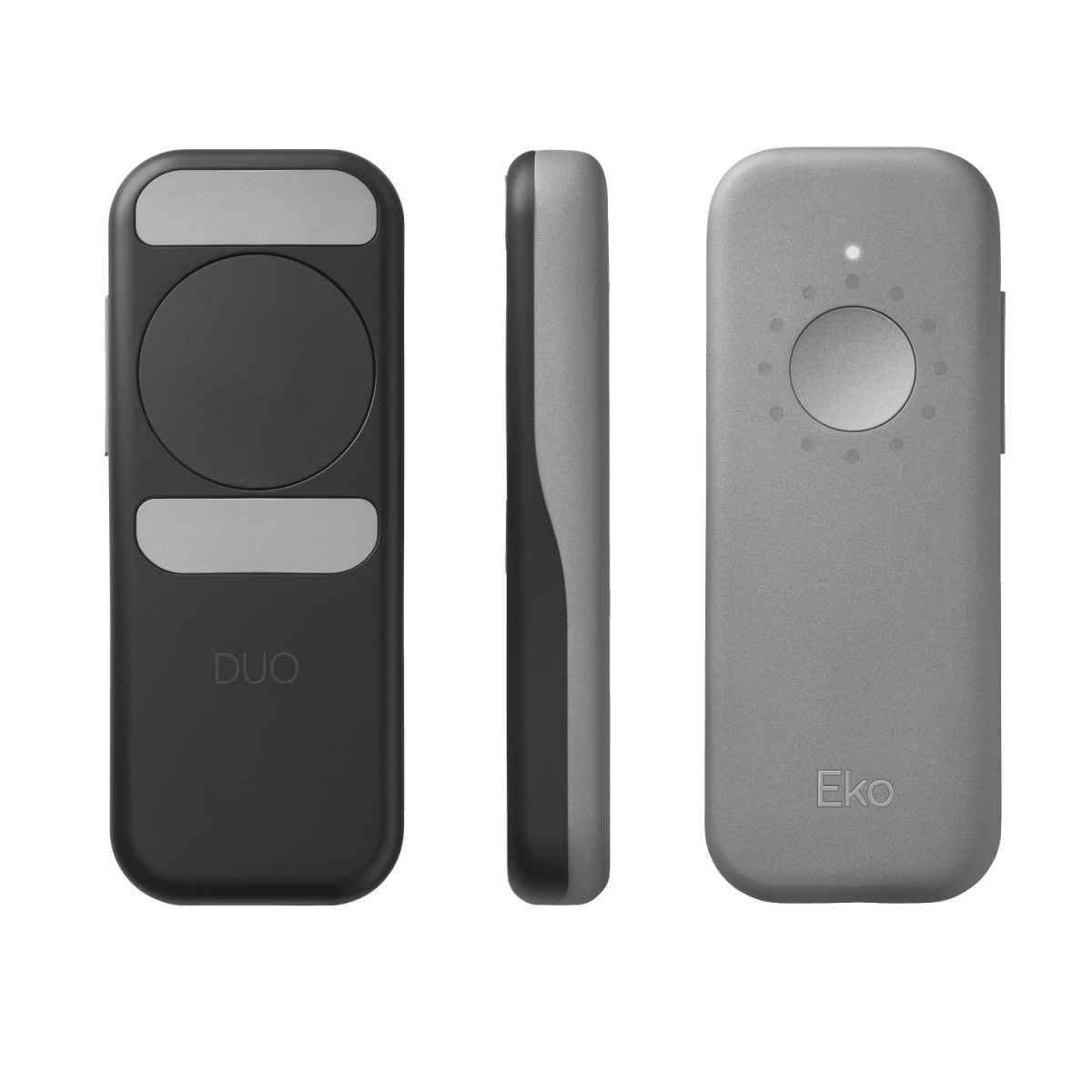

Eko DUO 2nd Generation VET
The 2nd generation veterinary Eko DUO offers you a digital stethoscope with integrated amplifier and a single-lead ECG. Compared to its predecessor, it convinces with improved Bluetooth signal strength, longer battery life and higher sound and ECG quality to provide optimal examination results.

The 32-fold sound amplification enables a quick and comprehensive cardiac assessment of large and small animals. Thanks to the practical pocket-sized format, it is not only suitable for use in veterinary practices and clinics, but also for mobile use on pastures or home visits.

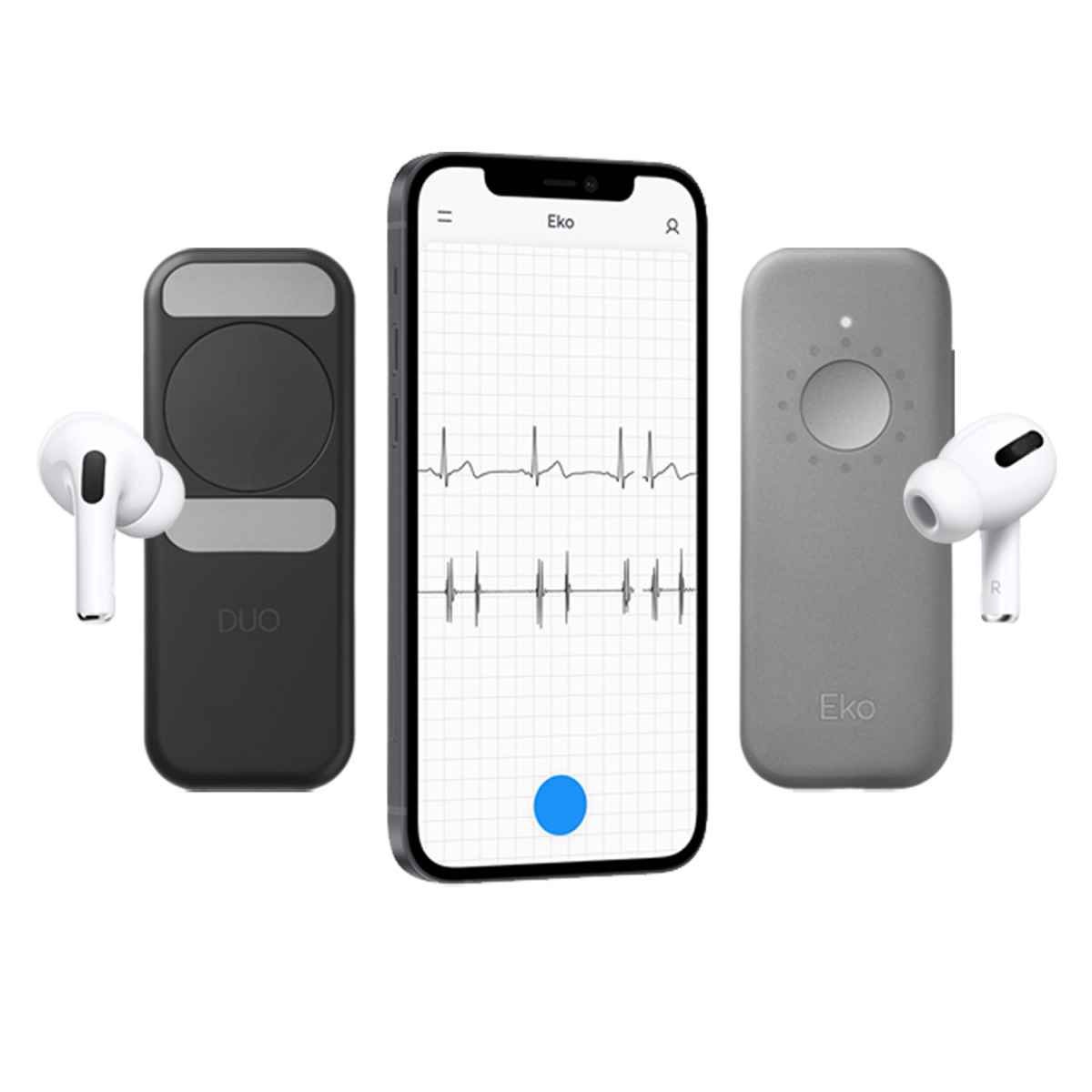

The innovative Bluetooth function means the digital stethoscope can be used wirelessly by simply connecting it to a smartphone or Bluetooth headphones. In addition, examination results can be transferred in real time to a mobile device (iOs or Android) and stored, viewed and evaluated on a patient-specific basis using the free Eko app.

The powerful lithium battery has an operating time of one year in stand-by mode. When the battery is low, the device can be conveniently recharged using the inductive charging pad included in the delivery.

Please note that the fur of animals can make it difficult to record ECGs as there is no direct skin contact. It is often sufficient to apply contact spray or gel to the corresponding area or to shave an area of the fur.

Product Details
Eko DUO 2nd generation
Digital stethoscope with integrated amplifier and single-lead ECG
Up to 32x amplification - adjustable in 12 steps
Equipped with two high-quality stainless steel electrodes
For a quick and comprehensive cardiac assessment
Enables early detection of heart disease
Improved Bluetooth signal strength and higher sound and ECG quality
With power button for quick recording
Features versatile listening options

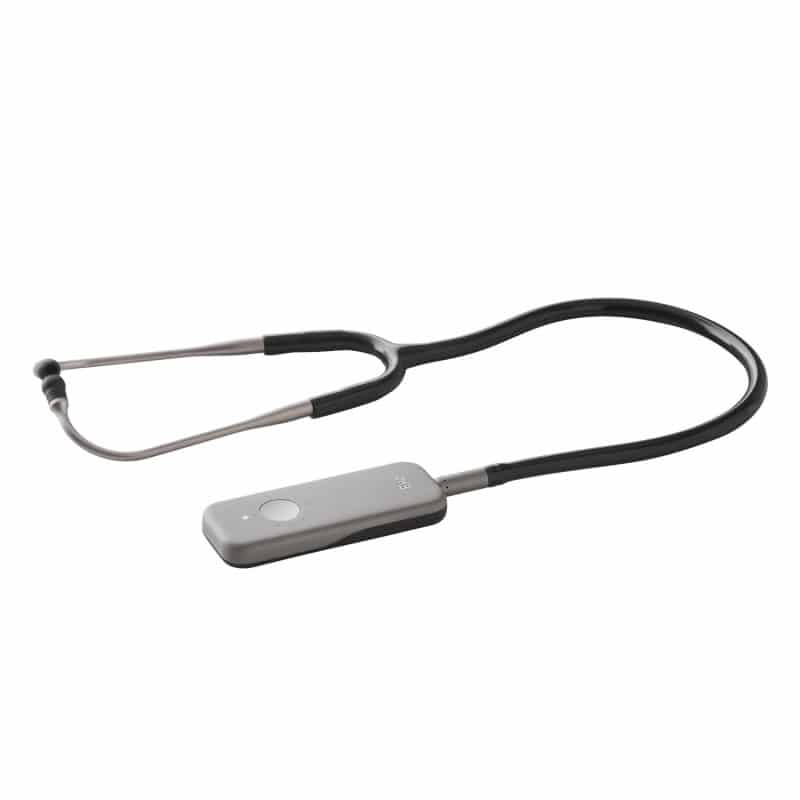

Auscultation with stethoscope tube or wirelessly via Bluetooth headphones
Flexible use thanks to practical pocket size
Fast and easy data transfer via Bluetooth
Real-time display, evaluation and storage of data in the Eko App
Free Eko App for iOs and Android
Share data via email as PDF or audio file
CE marked
Ideal for veterinary practices and mobile use
Manufacturer's warranty: 2 years

Technical Details
Material: aluminium and impact-resistant ABS thermoplastic
Latex- and DEHP-free
LED ring indicates whether unit is switched on and which filter function is set
Frequency range: 20 Hz - 2 Khz
32-fold sound amplification
Sampling rate: 4000 Hz (stethoscope); 500 Hz (ECG)
2 stainless steel electrodes
High-pass filter: 0.01 Hz
Line filter: 50 / 60 Hz
Usable with Bluetooth Ble (Bluetooth low Energy 4.2)
Rechargeable lithium battery
Operating time: 1 year in stand-by mode
Automatic switch-off after 5 minutes without use
Wireless charging pad
Dimensions: 119 x 47 x 16 mm
Weight: 102 g
Length of stethoscope tube: approx. 80 cm

Advantages of the Eko DUO 2nd Generation
Safe auscultation
Additional ECG monitoring
Clear representation of body sounds
Storage of the examination data on smartphone or tablet
Data can be forwarded
Wireless charging via charging pad
Compatible with iOs and Android
Intuitive operation with only a few buttons

Delivery Contents
1 DUO ECG + Digital Stethoscope (2nd generation)
Wireless charging pad
Adapter
Operating instructions
