CHISON ECO1 VET Ultrasound Machine trans-rectal transducer L7V-A | with battery

Product overview
Inclinable 12 inch LED display
Easy operation thanks to shortcut keys
Low weight and compact dimensions
With measurement and computational software
Suitable for various animal species

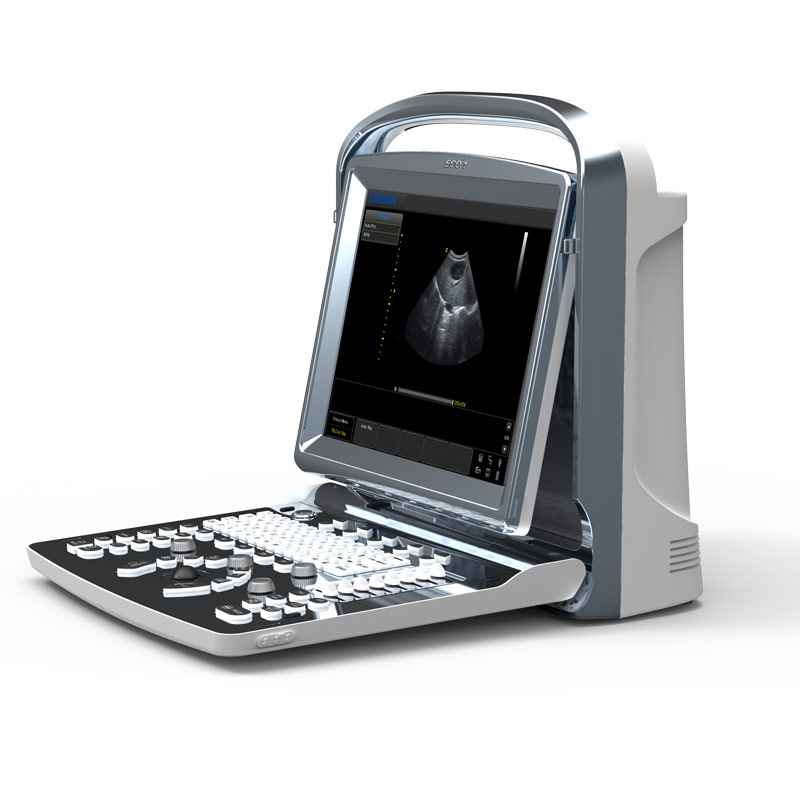

CHISON ECO1 VET Ultrasound Machine
The ECO1 VET is a veterinary ultrasound machine that is also ideal for mobile use, thanks to its low weight and compact dimensions. The inclination on the 12 inch large LED display can be adjusted, making it easy to read in varying positions. The ECO1 VET ultrasound machine has an alphanumeric keypad with background lighting, which allows for safe operation in even darker rooms.

Product Details on the CHISON ECO1 VET
Ultrasound machine for veterinary medicine
12“ LED display (inclination adjustable from 0 – 30°)
Resolution: 1024 x 768
Alphanumeric keyboard with background lighting
Shortcut keys provide simple operation
Active buttons are illuminated
Work modes: B-, 2B-, 4B-, BM- and M-Mode
1 active transducer port (also available with 2 transducer outlets upon request)
With measurement and computational software for different animals
Multilingual software (English, German, Spanish, Italian, Portuguese, Turkish, French, Polish, Czech, Russian, Chinese)
Optionally available with rechargeable battery
Mains and battery operation possible
EASYVIEW™: image archive system
Ultrasound imaging: Multiple Beamforming technology
Data management system for patient data administration
Delivery includes L7M-A linear transducer or L7V-A trans-rectal transducer

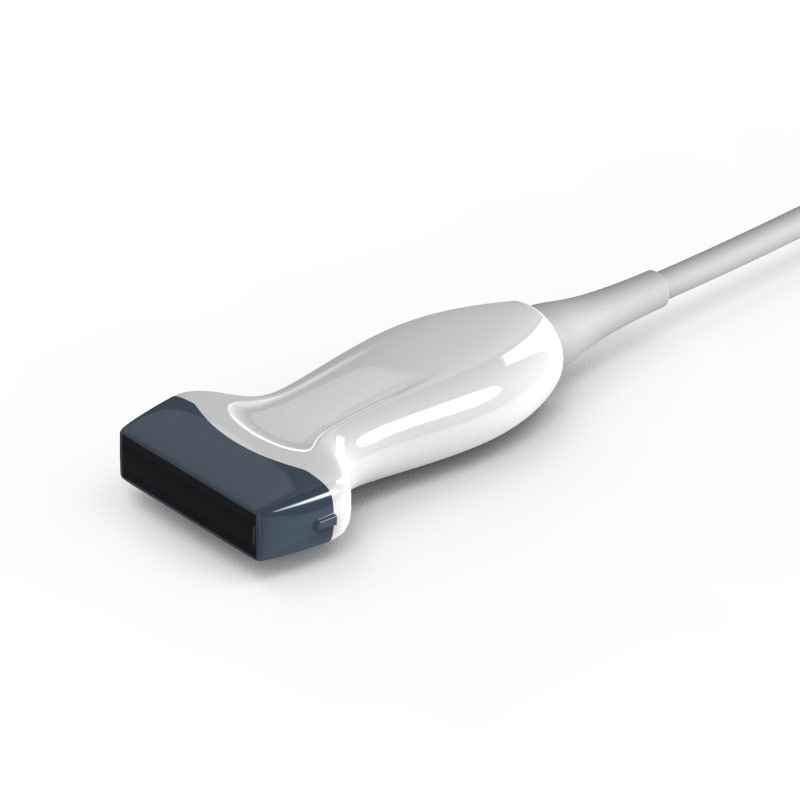

Technical Data for the L7M-A Ultrasound Transducer
Transducer head length: 40 mm
Main frequency: 7.5 MHz
Settable frequencies: 5.3, 6.5, 7.5 and 10.0 MHz
Suitable for imaging arteries, soft tissues and tendons in horses

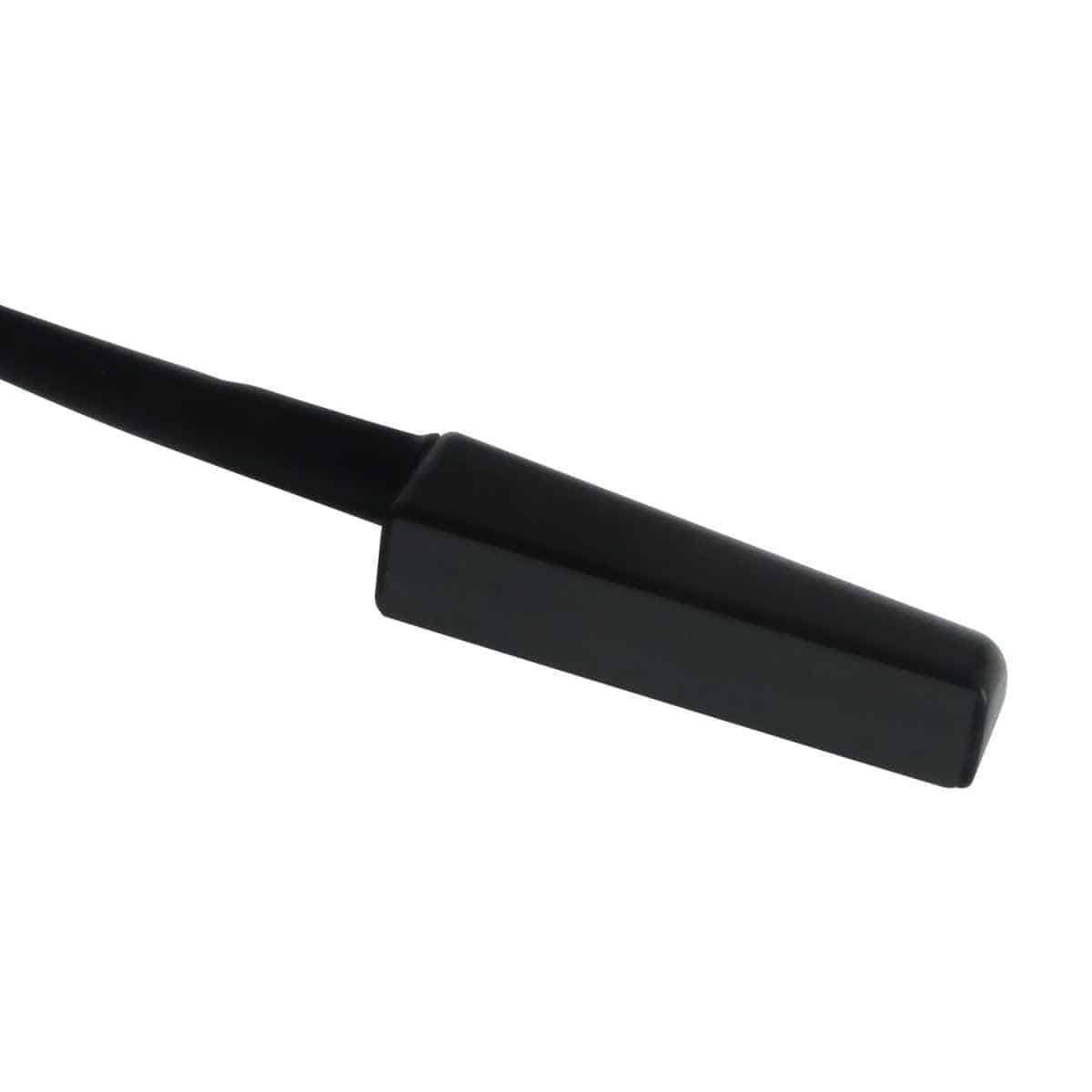

Technical Data for the L7V-A Trans-Rectal Transducer
Main frequency: 7.5 MHz
Settable frequencies: 5.3 - 10.0 MHz
Suitable for viewing abdominal organs

Possible Areas of Application for the CHISON ECO1:
Abdomen
Cardiology
Gynaecology / obstetrics
Urology
Soft tissue
Peripheral arteries

Technical Data
8TGC Segment
256 MB memory
Gain (0~255)
3 USB ports
1 LAN, 1 VGA, 1 BNC port and 1 Video Out port, foot switch (optional)
Enter comments, create reports and save/transfer as PDF file on USB stick
335 mm (length) * 155 mm (width) * 350 mm (height)
Weight: approx. 6 kg without transducer

Delivery contents
ECO01 VET ultrasound machine
Ultrasound transducer L7M-A or L7V-A
power cable, (optional Lithium-Ion rechargeable battery)
User manual
