Biocare Patient Monitor 12 inches | without printer

Product overview
Multiple parameter patient monitor animals
With visual and acoustic alarms
With integrated litihum battery
Available with 12 or 15 inch display
Available with or without integrated printer

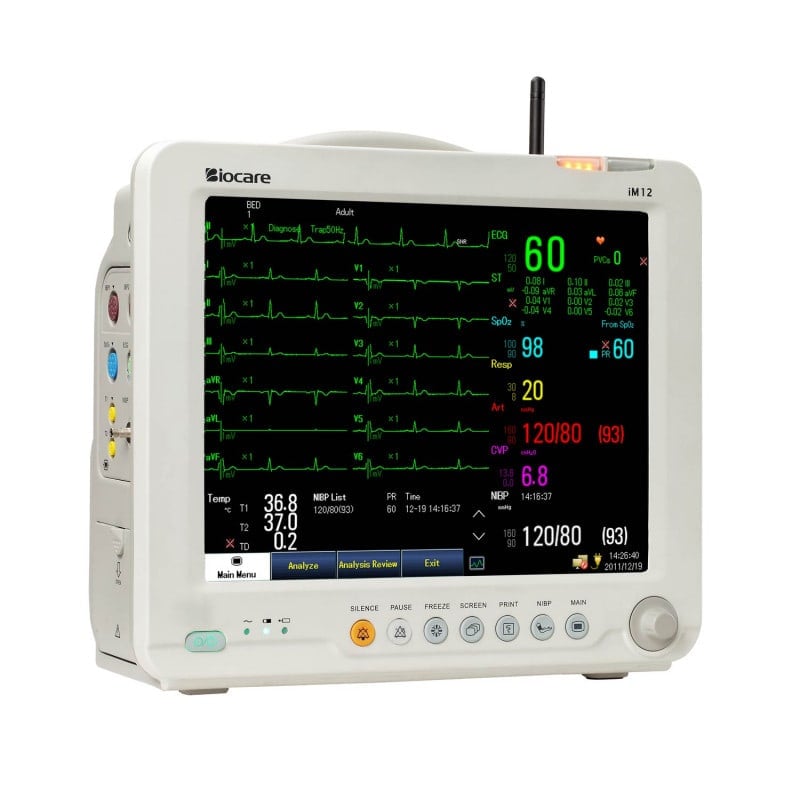

iM 12 VET Patient Monitor
The veterinary patient monitor iM 12 VET from Biocare is suitable for monitoring veterinary patients, e.g. during anaesthesia. The monitor measures ECG, breathing rate, breathwave, temperature, oxygen saturation and pulse rate. Additionally, the patient monitor is equipped with a visual and acoustic alarm function to show both physiological and technical deviations. The alarm function is divided into the three levels "high", "medium" and "low".

To gain an optimal overview, the colours of the curves and the parameters of the clear, 12 inch TFT-LCD display can be adjusted individually. The rechargeable lithium batteries allow for continuous operation, even in case of power failure. If the monitor is connected to an AC power source, the batteries are charged - regardless of whether it is switched on. The patient monitor iM 12 VET is available with or without integrated printer.

Product Details
Patient monitor iM 12 VET
To monitor vital signs in animals
Alarm function included (visual and acoustic)
Included calculating function
Curves and parameters of the display can be adjusted in colour
Continuous use thanks to lithium battery
Available with or without printer

Parameters
ECG
Breathing rate
Breathwave
Temperature
SpO2
Pulse rate
NIBP (MAP)
IBP (optional)
EtCO2 (sidestream or mainstream) (optional)
Cardiac output (optional)
Multi-gas module (optional)

Technical Data
TFT-LCD display with 12 inches and 800 x 600 pixels
Power supply: 100-240 v, 50/60 Hz
Lithium batteries
Connectors: AC connector, USB, standard RJ45 network connection, VGA, equipotential bonding connection, analogue output (to connect to an oscilloscope), nurse call system interface, defibrillation synchronisation interface
Monitor weight: 4.5kg
Monitor dimensions: 310 x 163 x 285mm

Delivery Contents
Patient monitor iM 12 VET with 12 inch display
Five metal clamp electrodes
5-lead ECG cable
Earthing cable (4m length)
SpO2 probe (ear clip)
SpO2 probe extension
Three veterinary blood pressure cuffs (sizes: 7-13cm, 10-19cm and 18-26cm)
NIBP tube (3m length)
Temperature probe (rectal)
Mains connector
Two lithium batteries
Three NIBP cuffs
