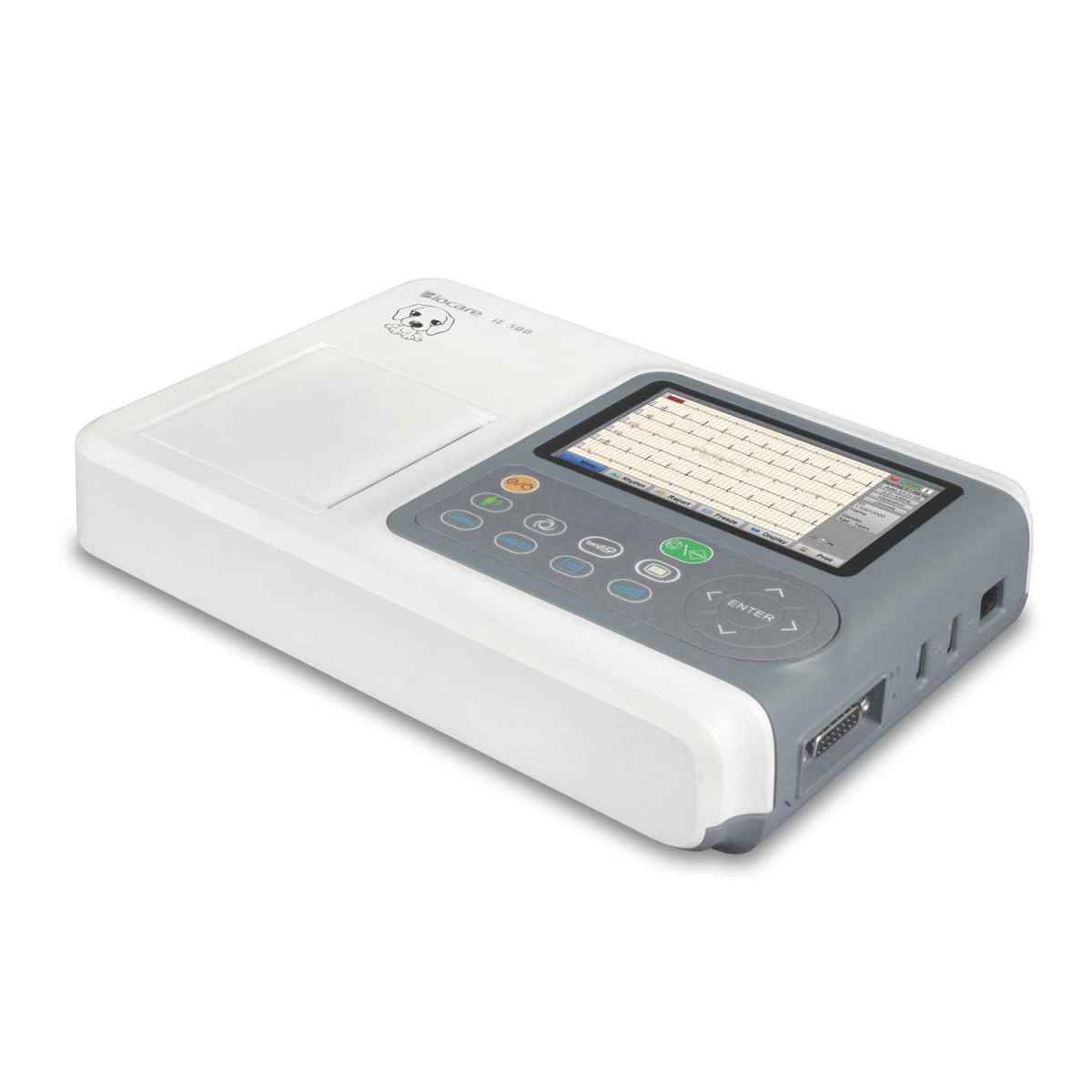

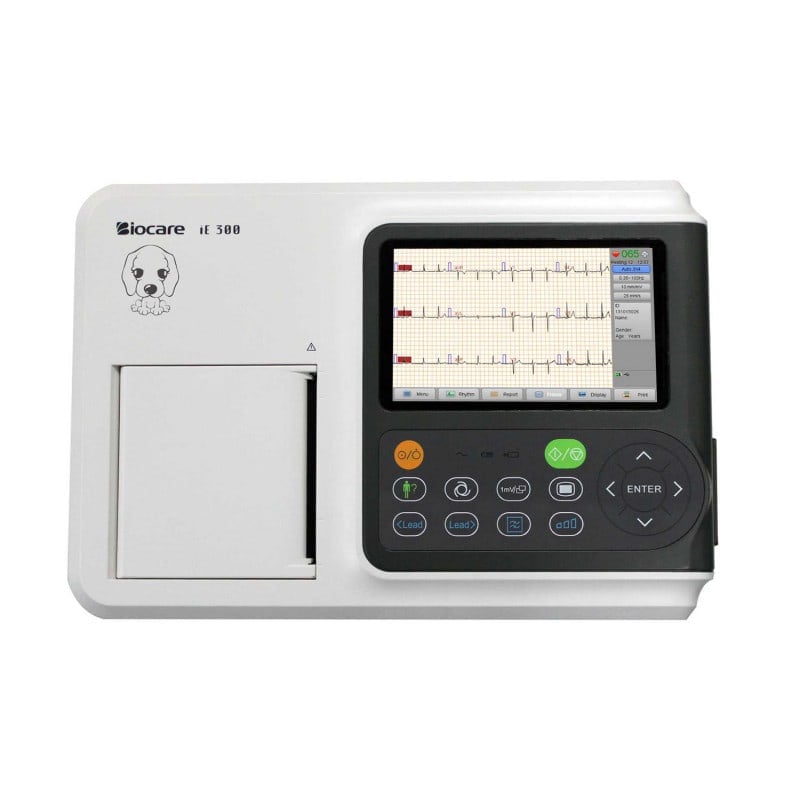

Biocare iE 300 Veterinary ECG Machine

Product overview
3-lead ECG machine for veterinary medicine
With 5 inch LCD display and integrated thermal printer
With various acoustic and visual alarms
Stores up to 3000 ECGs
Modes: AUTO, Manual and Rhythm

Biocare iE 300 Veterinary ECG Machine

The Biocare iE 300 veterinary ECG machine has been developed for ECG recording in animals and is equipped with a high resolution 5 inch LCD display. Up to 7 measurements can be recorded simultaneously and monitored in the large LCD display. The large integrated memory allows the storage of up to 3000 ECGs. The results can be transferred via USB or LAN connection e.g. as PDF or JPG or printed out with the integrated thermal printer.

Thanks to the integrated barcode scanner, the animal ID is identified particularly quickly and easily. Additionally, the Biocare iE 300 Vet is equipped with an integrated rechargeable lithium battery for up to 3 hours of continuous use. The 3-lead ECG machine can also be used as a mobile device, thanks to its compact design and low weight. After use, the veterinary ECG machine can be disinfected with an alcohol-free disinfectant.

Product Details

3-lead ECG machine
Model: iE 300 Vet
For ECG recordings in animals
With evaluationModes: AUTO, Manual and Rhythm
With integrated thermal printer
Easy operation thanks to "One-touch" shortcut keys
Acoustic and visual alarm for empty paper tray, low battery charge and detached leads
With powerful lithium battery (up to 3 hours of continuous operation per full charge)
With battery charge level display
With LAN and USB connector

Technical Details

Low pass filter
Mains filter
EMG filter
High frequency filter
Ports: LAN port (1x), USB port (2x)
Storage formats: JPG, PDF, XML
Weight: ca. 1.3kg
Dimensions: 28.1 x 19.1 x 5.9cm (L x W x H)

Delivery Contents

Biocare iE 300 veterinary ECG machine
Patient cable
ECG electrode holder
EGC paper
Mains connector
Handle (for assembly)
User manual
