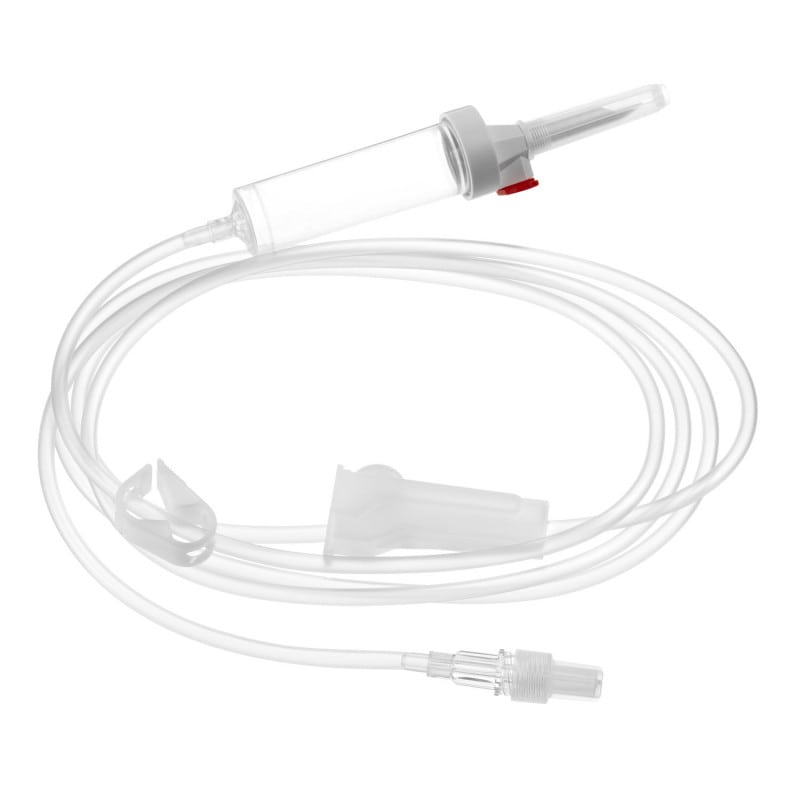

BD Gravity Infusion Set with Anti-Run Dry Technology

Product overview
With Anti-Run Dry Technology
Drip chamber with 15 µm filter & piercing mandrel
Minimises the risk of air entrapment & occlusion
ISO 8536-4 compliant
Latex and DEHP free

BD Gravity Infusion Set with Anti-Run Dry Technology

The BD Gravity Infusion Set with Anti-Run Dry technology features a hydrophilic filter membrane that minimises the risk of air entrapment in the tube. In addition, the hydrophilic membrane ensures a constant fluid level after infusion, preventing backflow of blood from the catheter. Easy filling of the tube, with only one hand and without fluid leakage, is made possible by the AutoPrime cap.

You can get the gravity infusion set optionally with an additional SmartSite system or with a Check Valve. The SmartSite system contains a closed system with a needle-free Y-port, which reduces the risk of bacterial contamination and needlestick injury. The model with non-return valve has a non-return valve on the tubing which prevents backflow of fluid.

Product Details

BD Gravity Infusion Set with Anti-Run Dry Technology
With manual ventilation
Drip chamber with piercing spike
20 drops per ml
Drip chamber with 15 µm filter
Minimises risk of air entrapment
Maintains a constant fluid level after the end of infusion
Prevents blood reflux from the catheter and thus avoids occlusion
ISO 8536-4 compliant
AutoPrime cap with hydrophobic venting filter
Can be filled with one hand through the AutoPrime cap, without liquid leakage
DEHP-free PVC tubing
Latex-free
Individually sterile packed
Fixed Luer Lock
With tube clamp
Tube innerdiameter: 3 mm
Tube outer diameter: 4 mm
Tube length: 185 cm
Filling volume: 18 ml, with SmartSite system variant: 19 ml
Optional with needle-free SmartSite system
Optional with Check Valve
Quantity: 1 piece
