AEG Full-ISO ARE H5 Handheld Reader

Product overview
For animal identification
Battery powered
With USB HID interface
Internal memory for up to 2047 records
Long range

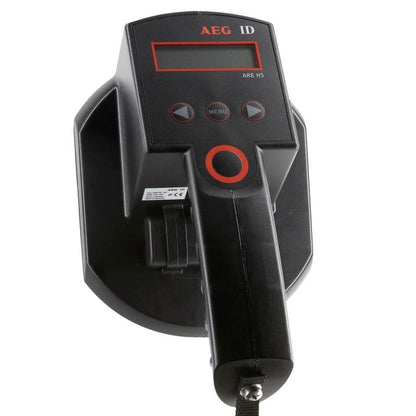

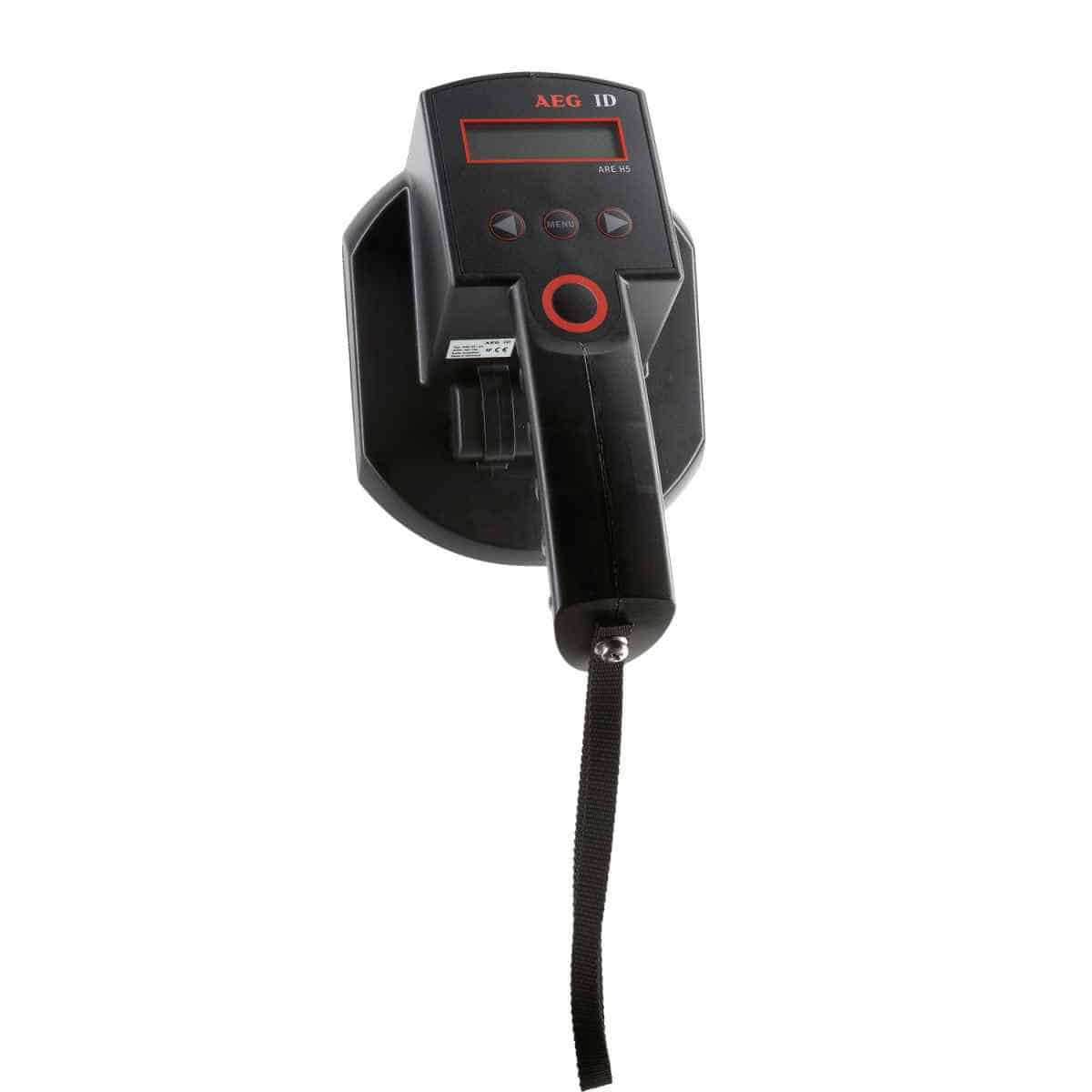

AEG Full-ISO ARE H5 Handheld Reader
The ARE H5 from AEG is a full ISO handheld reader for animal identification with a long reading range. The battery-operated device includes a USB HID interface, an internal memory for over 2000 readings and many other useful functions. For example, a text and an attribute can be assigned to the read transponders, which then appear in the second line below the code on the display, thus allowing additional information to be stored.

Product Details
AEG Full-ISO ARE H5 Handheld Reader
For animal identification
With USB HID interface
Internal memory for up to 2047 readings
Long range
Device beeps when transponder has been read
If no transponder can be read within five seconds, the unit switches off the reading mode and returns to Stand-By: the display shows "No Tag"
Automatic switch-off: The unit switches off automatically if no button is pressed for ten seconds (adjustable between one and 30 seconds)
The transponder can be assigned a text (second line on the left) and an attribute (second line on the right), e.g. animal name and location (pasture, stable, etc.)
In the default setting, the available 27 attributes are set to A to Z (capitol letters) and # (= no attribute) . Any text with up to 14 characters can be assigned to each of these attributes
Online Mode:can be set so that readings are not stored in the internal memory, but are sent via the HID USB interface to a PC or other device
Menu languages: German and English

Readable transponder types according to DIN/ISO 11784/11785
FDX-B
HDX
Destron
Datamars
Trovan
PSK1
PSK2
Transponder with ASK 64 bit Manchester coding (e.g. Chip 4102 from EM)

Reading Distance
The typical reading distance between the handheld reader and a transponder is 10 to 40 cm and depends on various criteria:

Angle at which the antenna and transponder are positioned in relation to each other.
Size and type of transponder
Temperature range
Environmental conditions
Electrical interference
Metal
Other ISO readers

Internal Memory
When a reading has been successfully accomplished, the reader checks its internal database to see if the transponder code is already stored:

If the code does not yet exist, it is integrated into the database as a new data record. In addition to the code, the transponder type, date and time as well as any attributes are also stored in the database.
If the code already exists in the database, a new data record is only created if the attribute is different.
If the code and attribute are the same, no new data record is stored. In this case, the reader emits two successive beeps.

Technical Data
Display: LCD with 2 x 16 characters
Power supply: 7.2 V Li.-Ion battery
Operating frequency: 134.2 kHz
Dimensions: 226 x 140 x 122 mm
Weight: 475 g

Delivery Contents
AEG Full-ISO ARE H5 handheld reader
Hand strap
Rechargeable battery
International charger with interchangeable adapter
Transmission cable
