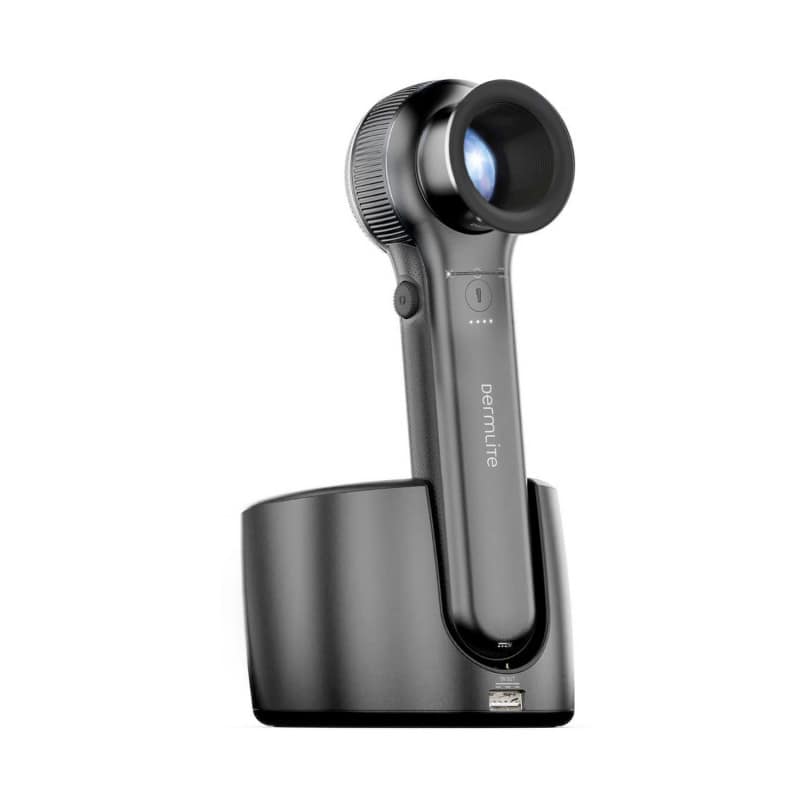

3GEN DermLite DL5 Dermatoscope

Product overview
Polarised, non-polarised or parallel mode
Enables scrolling through the polarisation range
32 mm lens system with 10x magnification
4 UV LEDs, 16 white LEDs, 4 pigment boost LEDs
Removable, autoclavable contact plate

3GEN DermLite DL5 Dermatoscope
The 3GEN DermLite DL5 dermatoscope with the first variable polarisation system worlwide not only offers its user the choice between (cross-) polarised or non-polarised mode, but also allows him to thoroughly scroll through the polarisation range with the help of the turn and push button. In addition, the hybrid dermatoscope also makes superficial structures clearly visible under parallel polarisation.

With the help of 4 UV LEDs and 16 white LEDs, the dermatoscope always ensures optimal illumination during the skin examination. It features 9 different brightness and polarisation levels and is equipped with a removable contact plate with a 10 mm reticule, which can be autoclaved if required. In addition to the 3GEN DL5 dermatoscope, we offer a wide range of accessories, such as a matching smartphone adapter, a case, a charging station and much more.

Product Details
3GEN DermLite DL5 dermatoscope
First variable polarisation system in a hybrid dermatoscope
Choice between polarised and non-polarised mode
Superficial structures visible under parallel polarisation
SScrolling through the polarisation range thanks to the rotary & push button
Enables the examination of visual depths of lesions

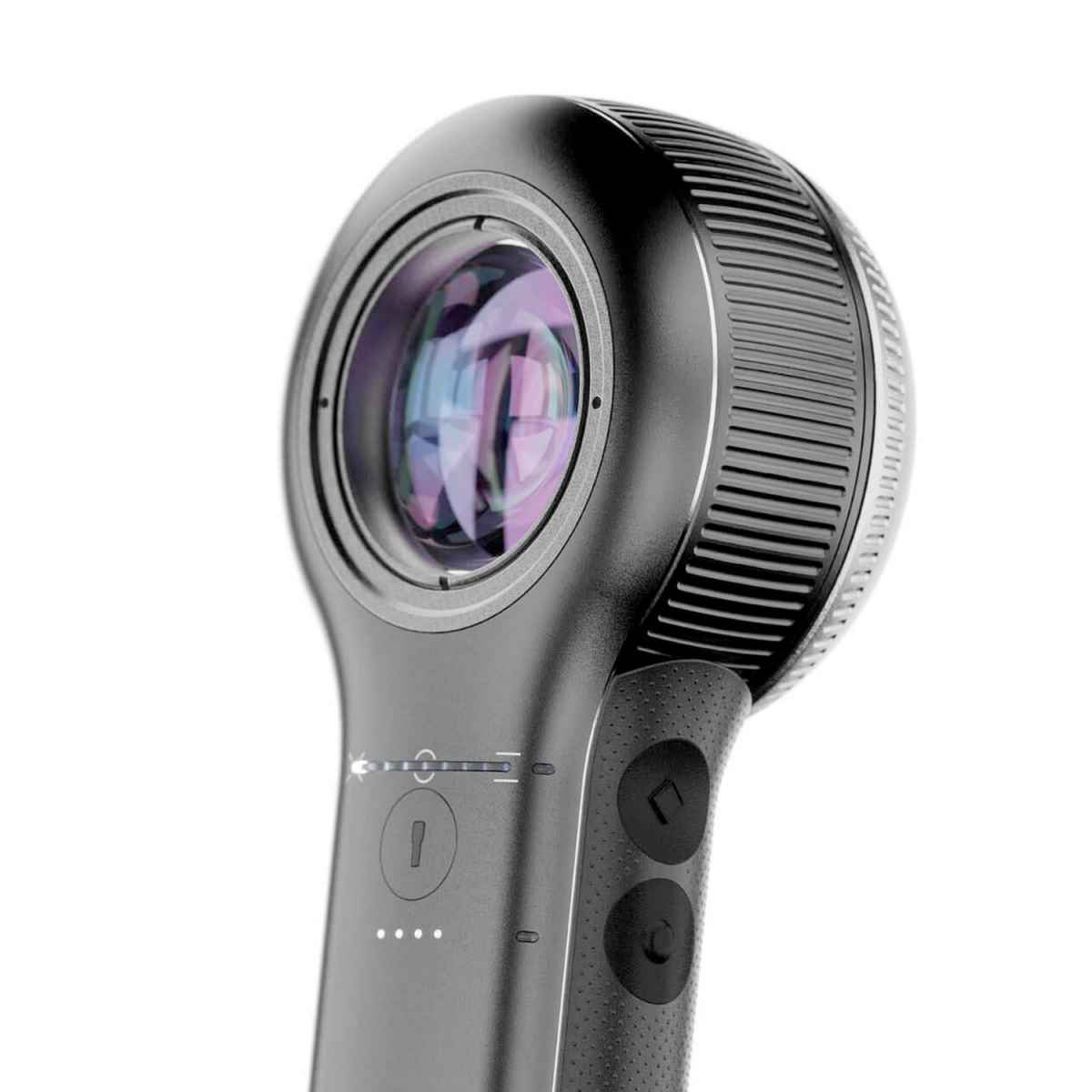

32 mm lens system with 10x magnification
Offers particularly high resolution at close range
Provides 4x UV LEDs and 16 white LEDs
Allows fluorescent features to be seen
PigmentBoost® for visualisation of pigmented lesions (4x Pigment-Boost-LEDs)
Optimum illumination thanks to the powerful LED lighting
Features 9 different brightness & polarisation levels
Removable, autoclavable contact plate with 10 mm thread cross
Including universal smartphone adapter MCC & charging station

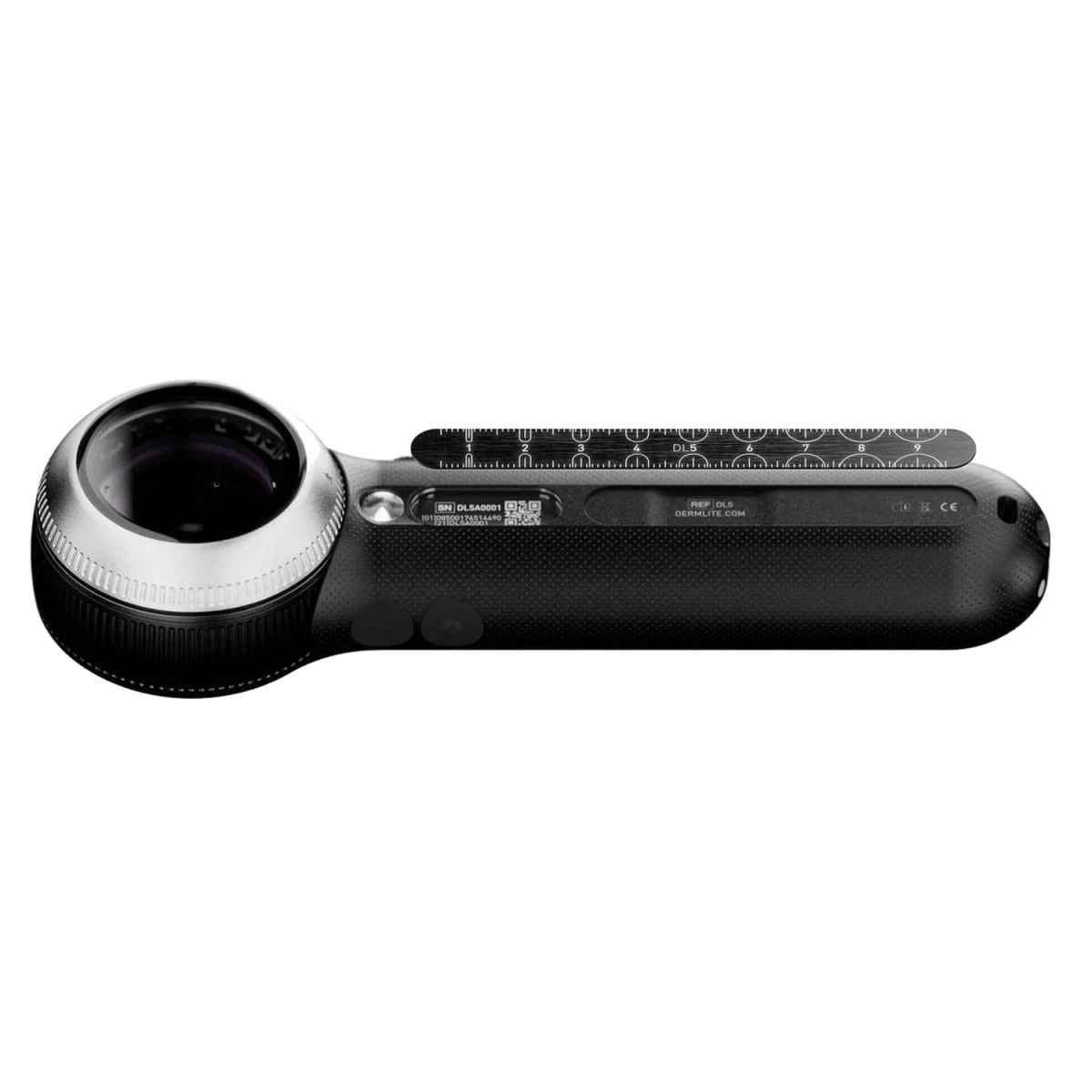

With magnetically attached ruler (100 mm)
Durable rechargeable battery
Retractable spacer
Dimensions: 182 x 58 x 36 mm
Weight: approx. 285 g
Manufacturer's warranty: 5 years

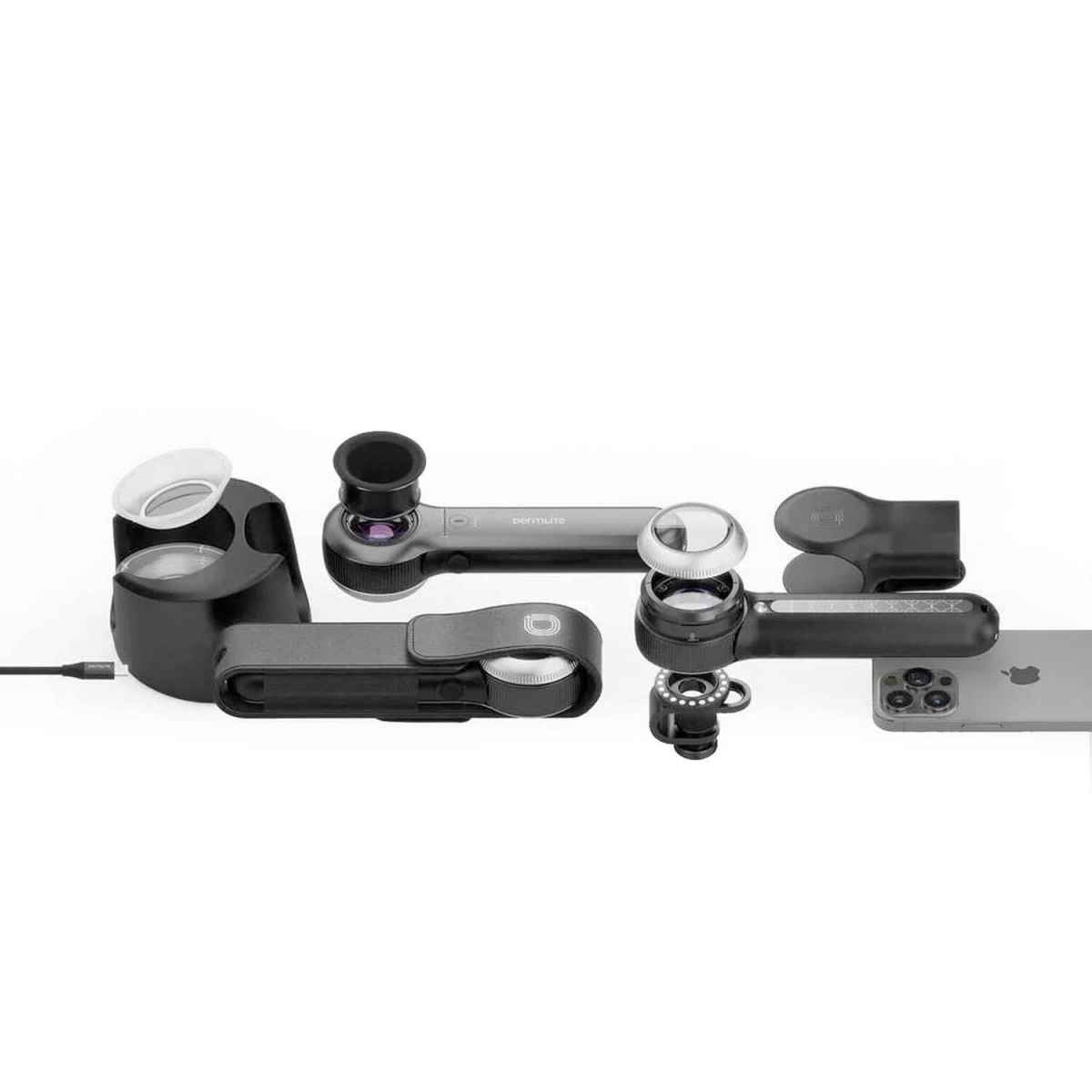

Delivery Contents
3Gen DermLite DL5 dermatoscope
Charging station
Leather case
Waist bag
Universal smartphone adapter MCC

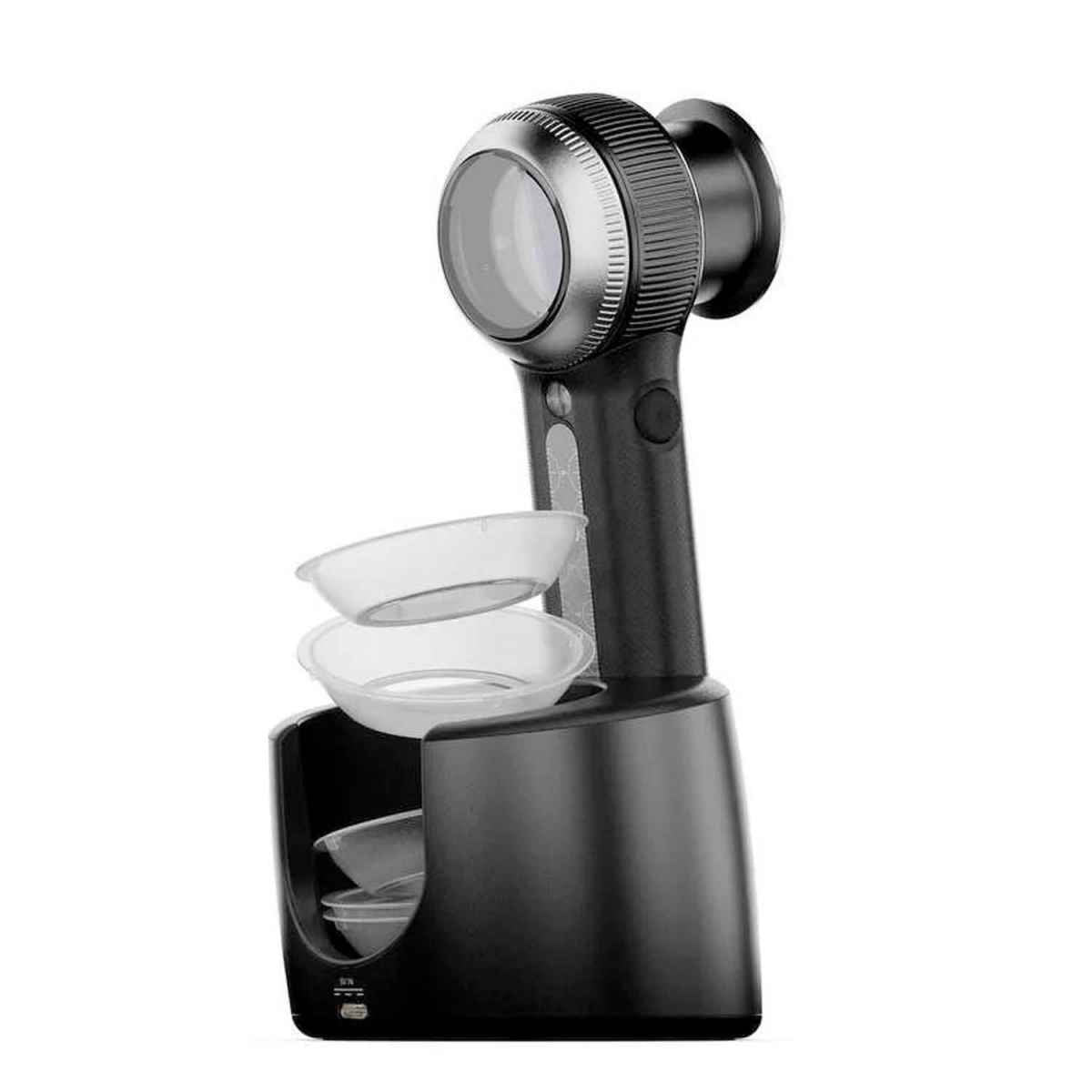

DL5 IceCap disposable protective caps (5 pieces)
Eyepiece
Ruler
USB cable (2 m)
Microfibre cloth
